LKS0026

LK Slotted Board EPS 16

LK Heating Board made of EPS (polystyrene) 16 mm thick with a full cover aluminium heat distribution sheet. The board has 4 pcs slots centred at 150 mm for LK Floor Heating Pipe Ø 12 mm. Compression strength ...

Read more

LKS0026

LK Slotted Board EPS 16

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Length Width Height Weight (kg) Packaging Item List
241 82 15 1200 mm 600 mm 16 mm 1,5

241 82 15

Length 1200 mm
Width 600 mm
Height 16 mm
Weight (kg) 1,5
Packaging
Item list

Detailed Information

Description

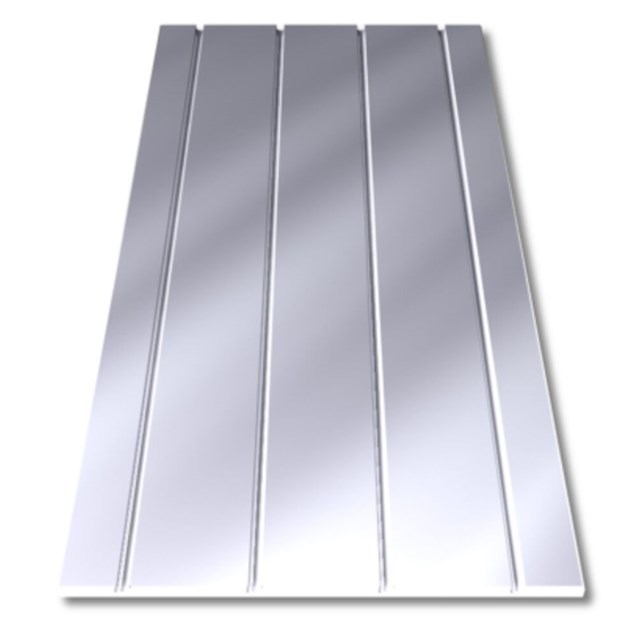

LK Heating Board made of EPS (polystyrene) 16 mm thick with a full cover aluminium heat distribution sheet. The board has 4 pcs slots centred at 150 mm for LK Floor Heating Pipe Ø 12 mm.

Compression strength short time load (ISO 844) 400 kPa.
Long lasting compression strength: 140 kPa (2% compr. in 50 years).
Thermal conductivity 0,034 W/m ºC.

Material Consumption

  • Approx. 1,5 pcs/m² excl. turning zone surface

Documentation

Product sheet

LK Slotted Board EPS 16

Assembly instruction

On load-bearing floors with LK Slotted Board EPS 16
