LKS0166

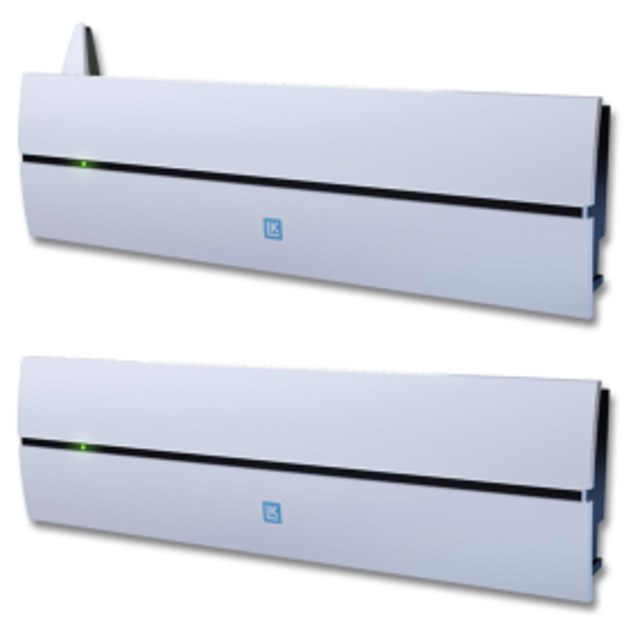

LK Receiver ICS 8 (NC)

The LK Receiver ICS 8 is used with the LK Room Thermostat ICS. Eight ICS Thermostats can be connected to the receiver unit. The unit can control up to twelve LK Actuators 24 V. The unit has an integrated 24-...

Read more

LKS0166

LK Receiver ICS 8 (NC)

  • Variants
  • Detailed Information
  • Documentation

Variants

Article Designation Width Height Depth No. of channels Communication Weight (kg) Packaging Item List
241 73 16 LK Receiver ICS-RF8 400 mm 120 mm 60 mm 8 Wireless 1,5
241 73 20 LK Receiver ICS-W8 400 mm 120 mm 60 mm 8 Wired 1,5

241 73 16

Designation LK Receiver ICS-RF8
Width 400 mm
Height 120 mm
Depth 60 mm
No. of channels 8
Communication Wireless
Weight (kg) 1,5
Packaging
Item list

241 73 20

Designation LK Receiver ICS-W8
Width 400 mm
Height 120 mm
Depth 60 mm
No. of channels 8
Communication Wired
Weight (kg) 1,5
Packaging
Item list

Detailed Information

Description

The LK Receiver ICS 8 is used with the LK Room Thermostat ICS. Eight ICS Thermostats can be connected to the receiver unit. The unit can control up to twelve LK Actuators 24 V.

The unit has an integrated 24-hour program for valve and pump exercise. Receiver is equipped with two potential-free outputs for starting/stopping the pump and heat source. Multiple receiver units can be linked together to the BUS cable to ensure that starting/stopping of the pump and heat source will work in a larger system. Furthermore, the device is equipped with 1 input for temperature reduction via an external signal, such as GSM switch.

From the unit’s integrated USB port, the floor heating system can easily be logged to check operations/troubleshooting.

Documentation

Product sheet

LK Receiver ICS 8 (NC)

Quick guides

Quick Guide - Resetting the ICS receiver unit and thermostat
