LKS0161

LK Thermostat ICS

LK Thermostat ICS is intended to be used with LK Receiver ICS. The thermostat is equipped with a background lit display for easy operation and display of features. The display shows set and actual temperature...

Read more

LKS0161

LK Thermostat ICS

  • Variants
  • Detailed Information
  • Documentation

Variants

Article Designation Width Height Depth Communication Color Packaging Item List
241 73 08 LK Thermostat ICS-W 100 mm 100 mm 20 mm Wired White, high gloss
241 73 10 LK Thermostat ICS-W 100 mm 100 mm 20 mm Wired Silver grey

241 73 08

Designation LK Thermostat ICS-W
Width 100 mm
Height 100 mm
Depth 20 mm
Communication Wired
Color White, high gloss
Packaging
Item list

241 73 10

Designation LK Thermostat ICS-W
Width 100 mm
Height 100 mm
Depth 20 mm
Communication Wired
Color Silver grey
Packaging
Item list

Detailed Information

Description

LK Thermostat ICS is intended to be used with LK Receiver ICS.

The thermostat is equipped with a background lit display for easy operation and display of features. The display shows set and actual temperatures, heating on/off, signal strength*, battery level*, operation mode and error messages, if any.

For the best energy efficiency, the room thermostat uses a so-called self-modulation technique consisting of signal pulses going to the valve actuator. The self-modulation technique means that the thermostat adjusts the power output in relation to the set temperature. When the temperature in the room approaches the set temperature, the power output is reduced to avoid overheating. This in turn, minimizes energy consumption.

When using the thermostats night reduction-/save energy function, the thermostat uses an adaptive (self-learning) function. The keys are lockable and as such the thermostat can also be used in public settings. It is also possible to connect the floor sensor.

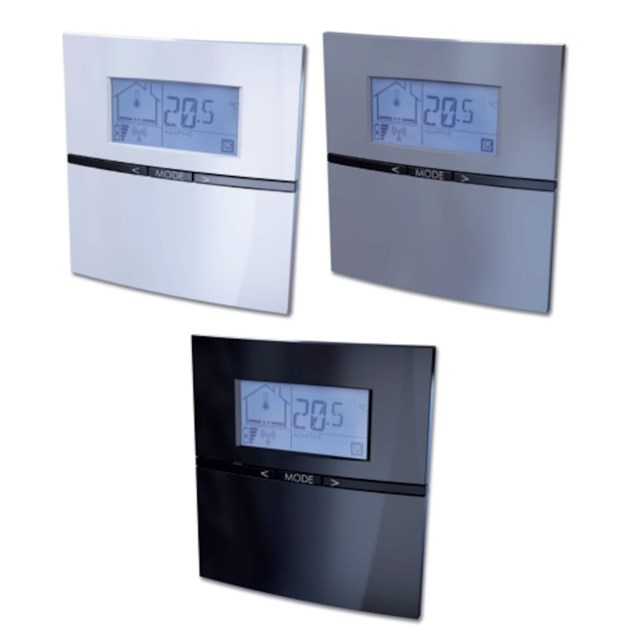

The thermostat is available in glossy white, silver grey or high gloss black.

*Only in wireless version.

Documentation

Product sheet

LK Thermostat ICS

Assembly instruction

LK Room Temperature Control ICS

Quick guides

Quick Guide - Programming wireless thermostat

Quick guides

Quick Guide - Resetting the ICS receiver unit and thermostat
