LKS4920717

LK 551 HydroMix - Compression fitting

LK 551 HydroMix is a mixing valve for water heating and heating systems. The mixing valve has a thermostatic element that regulates the supply of cold as well as hot water in order to achieve the desired ­tempe...

Read more

LKS4920717

LK 551 HydroMix - Compression fitting

  • Variants
  • Detailed Information
  • Documentation
  • Videos

Variants

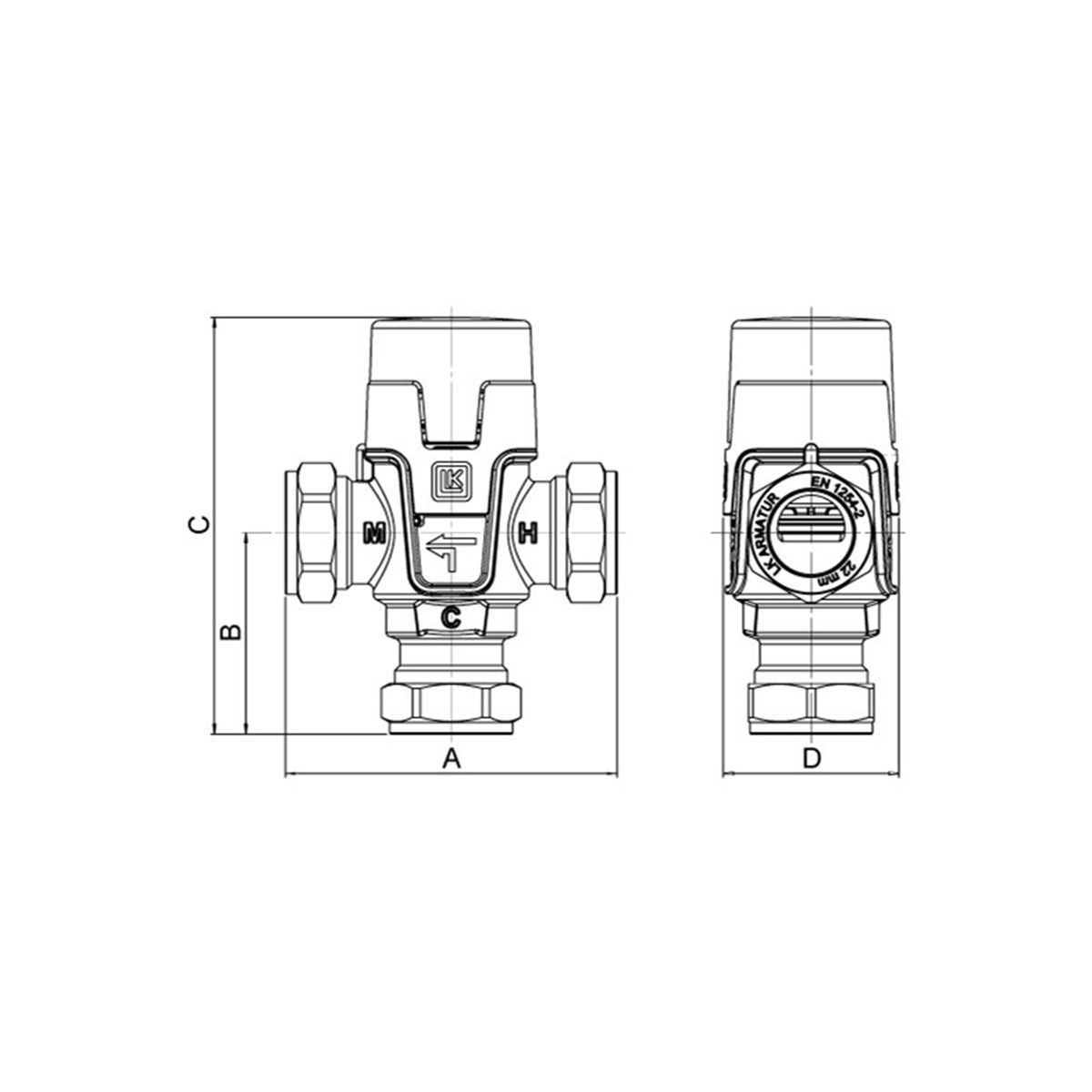

Article Kvs m³/h MPa Temp. range A mm B mm C mm D mm Dim. Packaging Item List
492 07 18 1,6 1,0 +35°C- +65°C 85 52 106 45
492 00 05 3,5 1,0 +35°C- +65°C 110 80 138 55 28 mm

492 07 18

Kvs m³/h 1,6
MPa 1,0
Temp. range +35°C- +65°C
A mm 85
B mm 52
C mm 106
D mm 45
Dim.
Packaging
Item list

492 00 05

Kvs m³/h 3,5
MPa 1,0
Temp. range +35°C- +65°C
A mm 110
B mm 80
C mm 138
D mm 55
Dim. 28 mm
Packaging
Item list

Detailed Information

Description

LK 551 HydroMix is a mixing valve for water heating and heating systems. The mixing valve has a thermostatic element that regulates the supply of cold as well as hot water in order to achieve the desired ­temperature. The valve has an anti-scald function that shuts off the ­incoming hot water flow in case of failure of cold water supply.
Arrows on the valve body indicate the direction of the flow.
C = incoming cold water
H = incoming hot water
M = outgoing mixed water

When fitted on top of boiler/storage tanks with built-in water heaters the valve should be installed with some space between boiler/storage tank and valve so as not to let the function of the valve be affected by heat radiation.

The valve knob is used to set the desired warm water temperature within the specified range. The ­protective cap prevents unintentional changes of the ­temperature setting.

Documentation

Product sheet

LK 551 HydroMix - Compression fitting

Videos

LK 551 HydroMix
