LK Parallel-connected water meter bracket

  • Check Valve
  • Easy maintenance
  • Male and female connection

LK PWB is a parallel-connected water meter bracket for water meter Q3 4 with a construction length of 190-220mm connection G25. LK PVK is available in many different models with variants for only 190mm meters a...

Read more

LKS4648101

LK Parallel-connected water meter bracket

  • Variants
  • Detailed Information
  • Documentation

Variants

Article Dim. Measuring range Note Weight (kg) Packaging Item List
464 81 01 1 1/4"/1" Q3 4 2 pcs - 190mm connection G1"
464 81 02 1 1/4"/1" Q3 4 2 pcs - 190-220mm connection G1"

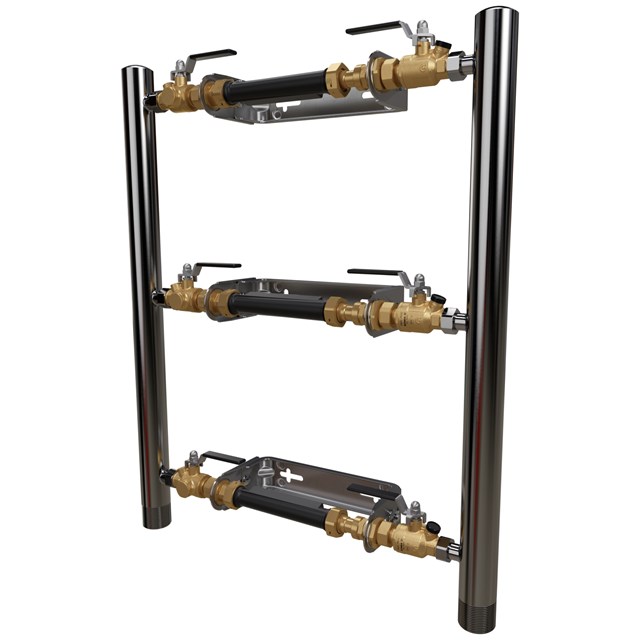

464 81 03 1 1/2"/1 1/4" Q3 4 3 pcs - 190mm connection G1"
464 81 05 1 1/2"/1 1/4" Q3 4 3 pcs - 190-220mm connection G1"

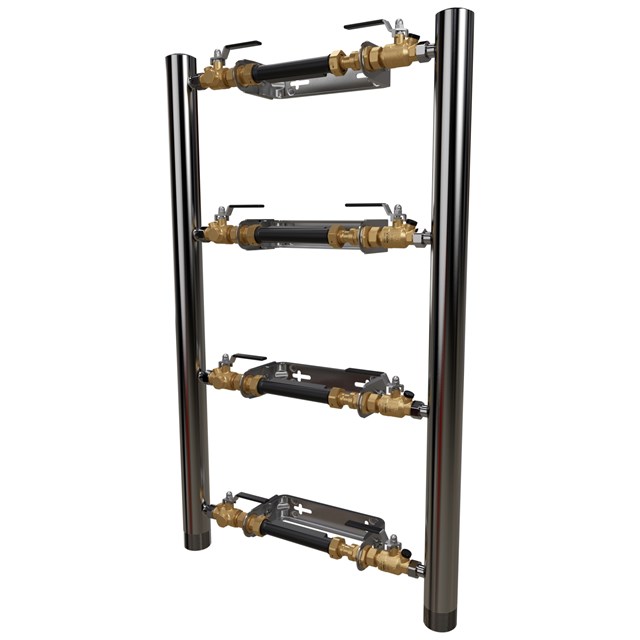

464 81 06 2"/1 1/2" Q3 4 4 pcs - 190mm connection G1"
464 81 07 Q3 4 4 pcs - 190-220mm connection G1" 2"/1 1/2"

464 81 01

Dim. 1 1/4"/1"
Measuring range Q3 4
Note 2 pcs - 190mm connection G1"
Weight (kg)
Packaging
Item list

464 81 02

Dim. 1 1/4"/1"
Measuring range Q3 4
Note 2 pcs - 190-220mm connection G1"
Weight (kg)
Packaging
Item list

464 81 03

Dim. 1 1/2"/1 1/4"
Measuring range Q3 4
Note 3 pcs - 190mm connection G1"
Weight (kg)
Packaging
Item list

464 81 05

Dim. 1 1/2"/1 1/4"
Measuring range Q3 4
Note 3 pcs - 190-220mm connection G1"
Weight (kg)
Packaging
Item list

464 81 06

Dim. 2"/1 1/2"
Measuring range Q3 4
Note 4 pcs - 190mm connection G1"
Weight (kg)
Packaging
Item list

464 81 07

Dim.
Measuring range Q3 4
Note 4 pcs - 190-220mm connection G1"
Weight (kg) 2"/1 1/2"
Packaging
Item list

Detailed Information

Description

LK PWB is a parallel-connected water meter bracket for water meter Q3 4 with a construction length of 190-220mm connection G25. LK PVK is available in many different models with variants for only 190mm meters and 190-200mm meters. By closing the valve before and after a water meter, this can be dismantled at the same time as the water flow is running through the other meters. LK PWB is always delivered with a built-in check valve in the valve after the meter. This check valve is also controllable and can also be replaced should it break. At LK PWB, it is also possible to choose whether you want incoming from above or below, the same applies after the meters. LK Passbit 190mm which is delivered with all LK PWB is intended to be able to sit permanently on cold water but only temporarily on hot water. The manifolds and brackets for the water meters are made of stainless steel.

Documentation

Product sheet

LK Parallel-connected water meter bracket

Assembly instruction

LK Water Meter Bracket PWB
