LK Press machine MAX Connect

  • Bluetooth

Electrohydraulic battery machine 18 V, 4 Ah for radial compression of couplers type LK >B<Press for dim 12-108 mm, and LK PressPex for dim 16-75. Designed for all dimensions from 12 to 108 mm. LK Press jaw o...

Read more

LKS1760367

LK Press machine MAX Connect

  • Variants
  • Detailed Information
  • Documentation

Variants

Article Designation Weight, compl. case (kg) Packaging Item List
176 03 67 UAP432CFMLK 13.5

176 03 67

Designation UAP432CFMLK
Weight, compl. case (kg) 13.5
Packaging
Item list

Detailed Information

Description

Electrohydraulic battery machine 18 V, 4 Ah for radial compression of couplers type LK >B
LK Press jaw or Press chain Standard are used for dimension 12-54 mm for >B
Li-ion type battery. LK Press machine MAX Connect is also available with a network connection, see LK Power supply V2.

Compression force from piston 32-36 kN, 350° turnable bracket for press jaw.

Machine weight only approx. 4.3 kg incl. battery.

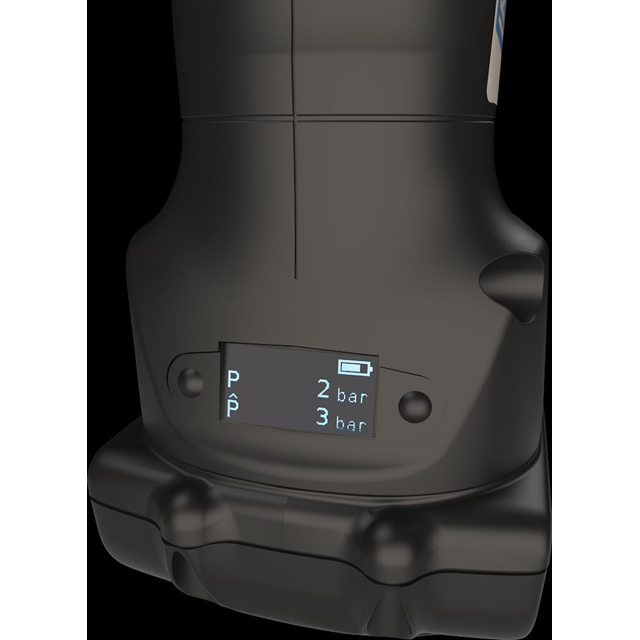

The machine has an OLED information display and is equipped with Bluetooth connection to allow it to communicate with a mobile phone or tablet. A separate USB adapter (optional accessory) is required for connection to a computer.

Supplied in a plastic case with a battery and charger.

Documentation

Product sheet

LK Press machine MAX Connect

Assembly instruction

Manual UAP432CFMLK_MAX Connect
