LK Systems
>
Products
>
Universal
>
Installation cabinets
>
Fitting Cabinet
>
LK Fitting Cabinet UNI 350x350

LK Fitting Cabinet UNI 350x350

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Width	Height	Depth	Connection	CO₂-EQ. (Kg)	Weight (kg)	Packaging	Item List
188 23 40	350 mm	350 mm	95 mm	Max. 4 pcs. with a group shut-off valve/Max. 5 pcs. without	9.2	6,5

Width	350 mm
Height	350 mm
Depth	95 mm
Connection	Max. 4 pcs. with a group shut-off valve/Max. 5 pcs. without
CO₂-EQ. (Kg)	9.2
Weight (kg)	6,5
Packaging
Item list

Detailed Information

Description

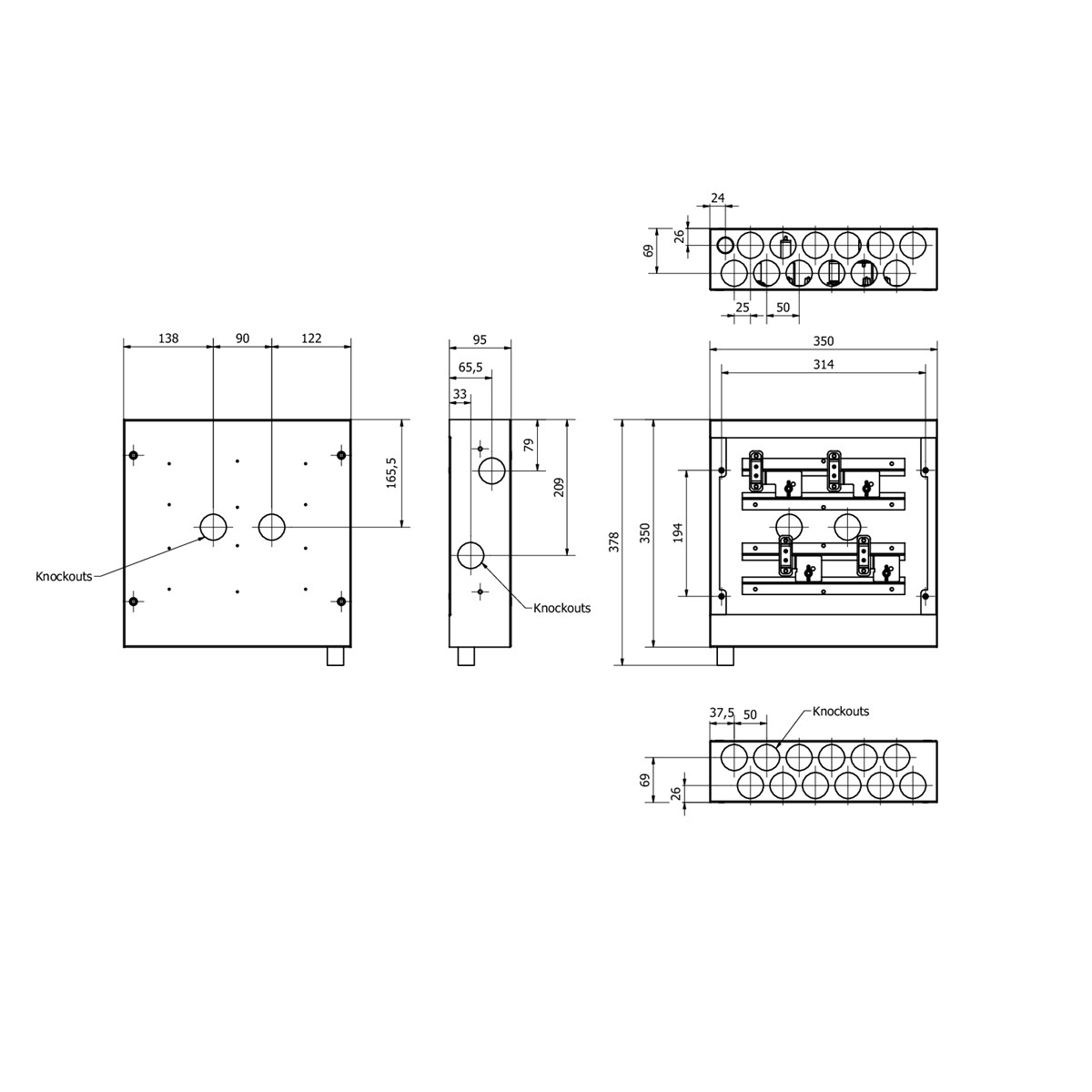

LK Fitting Cabinet is a compact coupling cabinet with space for five connections without group shut-off, and four with. The cabinet can also be used to connect an outdoor faucet to hot and cold water. The pipe for the outdoor faucet is passed through the back of the cabinet, where knock-out holes are provided with enclosed rubber bushings.
The cabinet is manufactured from powder coated steel plate, RAL 9016 white.

The cabinet has a watertight base with a 50 mm-high front edge.

The cabinet is supplemented with the necessary pipe inlets, corresponding to the number of sockets used. NOTE: Separate article:
• LK Pipe Inlet 25 conduit, Article no. 187 44 83 is used for bushing in the cabinet with conduit dimension 25.
• LK Pipe Inlet UNI, Article no. 187 44 84 (cut to correct diameter) is used for bushing in the cabinet with conduit dimension 12-34.

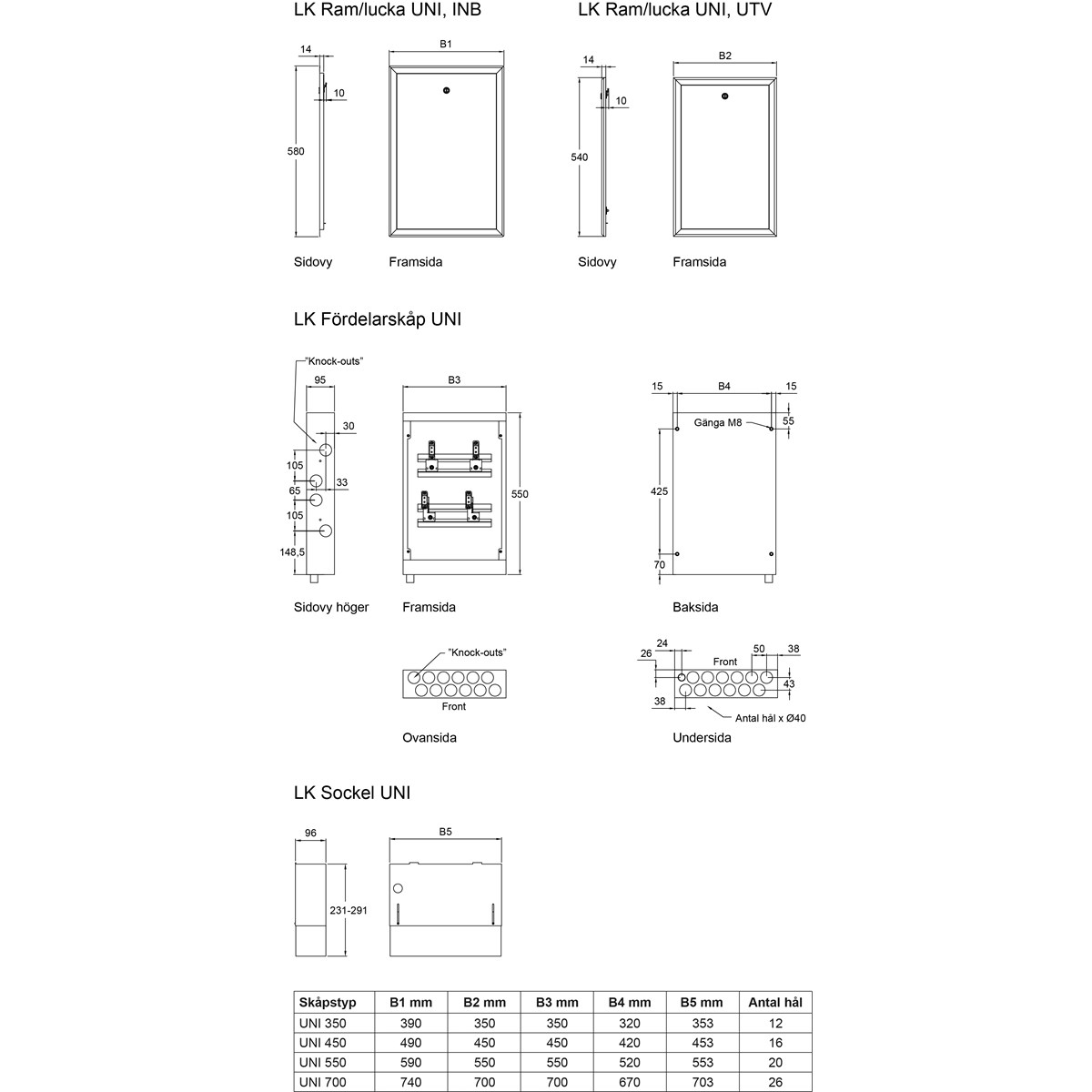

Note! LK Frame/hatch UNI INB or UTV 350x350 must be ordered separately.

Items Included

4 pcs. brackets
2 pcs. splash protection, blue plastic
1 pc. LK Drainage Elbow
Assembly instructions
4 pcs. wood screws with gasket for attachment of manifold cabinet to building structure
12 pcs. black rubber plugs
2 pcs. pipe inlets for outdoor faucet NOTE, not for coupling pipes.
1 pc. protective bag
