LK Manifold Cabinet UNI 550 CS

The LK Manifold Cabinet UNI 550 CS is equipped with holes for a centred riser, which provides more space for supply pipe insulation. The cabinet is manufactured in powder coated steel plate in white RAL 9016, w...

Read more

LKS1882341

LK Manifold Cabinet UNI 550 CS

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Width Height Depth Gasket CO₂-EQ. (Kg) Weight (kg) Packaging Item List
188 23 41 550 mm 550 mm 95 mm 1/14 18.98 4,7

188 23 41

Width 550 mm
Height 550 mm
Depth 95 mm
Gasket 1/14
CO₂-EQ. (Kg) 18.98
Weight (kg) 4,7
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

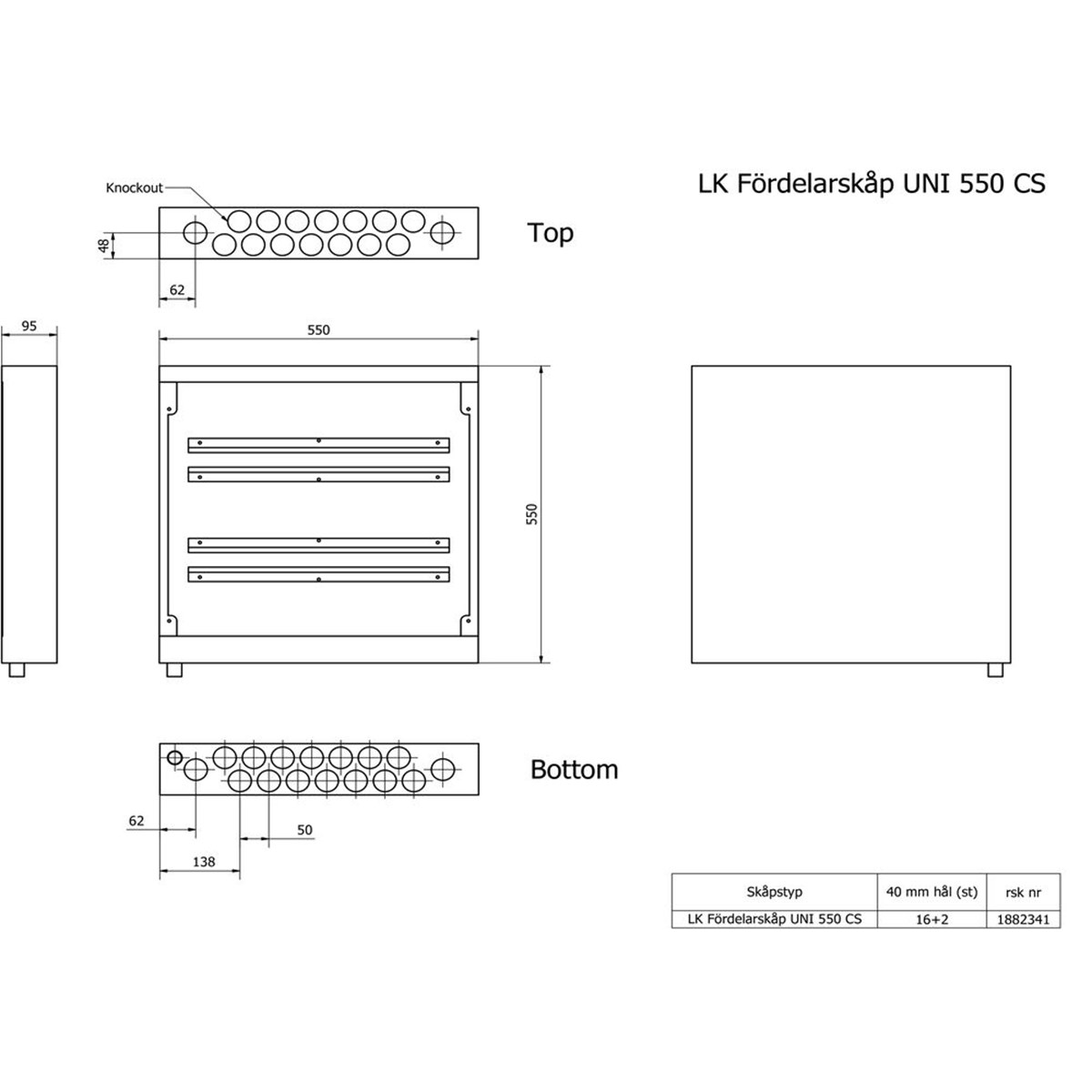

The LK Manifold Cabinet UNI 550 CS is equipped with holes for a centred riser, which provides more space for supply pipe insulation. The cabinet is manufactured in powder coated steel plate in white RAL 9016, with a watertight base and 50 mm-high front edge.

The hole pattern in this cabinet means that fewer connections are possible than with the LK Manifold Cabinet UNI 550.

The LK Drainage Elbow V2 is a complete package for exiting walls with leakage indication from the manifold cabinet. Protective bag included to pull over the cabinet while building is ongoing.

The cabinet will require additional sealing grommets. NOTE! Separate article:
• For a 25 mm conduit through an inlet hole, use the LK Pipe Inlet Conduit 25 (sealing grommet), Art. no. 187 44 83.
• For conduit/pipe sizes 12-34 mm through an inlet hole, use the LK Pipe Inlet UNI (sealing grommet), Art. no. 187 44 84.

For design and hatch range, see LK Manifold Cabinet UNI.

Documentation

Product sheet

LK Manifold Cabinet UNI 550 CS

EPD

LK Cabinet With LK Frame/Hatch & Base - EPD

Assembly instruction

EN.29.C.29_LK Manifold Cabinet UNI, LK Prefab Cabinet UNI

Related Products

Accessories

LK Pipe inlet 32 PiP

LK Pipe inlet 32 PiP

Pipe inlet for LK Heating Pipe 32 mm PE-X and LK Universal pipe PAL 32 mm with 40-44 mm conduit. Pip...

LK Pipe Inlet UNI

LK Pipe Inlet UNI

Pipe inlet for LK PAL Universal pipe A 32 with conduit 40-44 mm. The pipe inlet fits LK Manifold Cab...

LK Rubber pipe grommet 8-20

LK Rubber pipe grommet 8-20

Fits all LK's floor heating and Universal cabinets with 40 mm holes for pipe grommet.

LK Rubber pipe grommet for feed pipe 12-34

LK Rubber pipe grommet for feed pipe 12-34

Pipe grommet for LK´s installation cabinets for inlet of feed pipe dim 12-34 mm. Pipe inlet dim. 40 ...

LK Pipe Inlet UNI

LK Pipe Inlet UNI

Used for LK Manifold Cabinet UNI when pulling a pipe dim. 20-34 through an inlet hole. Cut to the co...

LK Pipe Inlet 25 conduit

LK Pipe Inlet 25 conduit

Used for LK Manifold Cabinet UNI when pulling a conduit dim. 25 through an inlet hole. Pre-cut to 25...

LK Frame/hatch UNI INB

LK Frame/hatch UNI INB

Frame with hatch for manifold cabinet UNI recessed in wall. Do not install in rooms with a waterproo...

LK Frame/hatch UNI UTV

LK Frame/hatch UNI UTV

Frame with hatch for manifold cabinet UNI surface-mounted on a wall. Made from powder coated 1 mm sh...

LK Conduit umbrella

LK Conduit umbrella

To prevent a possible leakage between conduit pipe and water pipe.

LK Outlet Plate V2

LK Outlet Plate V2

Outlet plate to LK Drainage elbow, in white or chrome. Fits in LK Drainage elbow V2. Can also be mou...

LK Wet zone hatch PRESEAL UNI

LK Wet zone hatch PRESEAL UNI

LK Wet zone hatch Preseal has a prefabricated foil flange that is 50 mm wide and is tested and appro...

LK Hatch HIDDEN

LK Hatch HIDDEN

LK Hatch HIDDEN for manifold cabinets GV and UNI mounted built into the wall. Frame with hatch which...

LK Pipe grommet 20-25 LP

LK Pipe grommet 20-25 LP

Pipe grommet for 20-25 mm pipe and 16 RiR with 25 mm conduit pipe in LK Installation cabinets with 4...

LK Pipe grommet 12-20 LP

LK Pipe grommet 12-20 LP

Fits all LK's floor heating and Universal cabinets with 40 mm holes for pipe grommet.

LK Pipe grommet 25 LP

LK Pipe grommet 25 LP

LK Pipe grommet 32 PiP LP

LK Pipe grommet 32 PiP LP

LK Pipe grommet 32 LP

LK Pipe grommet 32 LP

LK Conduit Umbrella is used to prevent potential leakage from entering between the media pipe and th...

Spare Parts

LK Sealing plug black 40

LK Sealing plug black 40

Sealing plug for unused pipe entry holes Ø 40 mm in cabinet.

LK Sealing Plug 40 LP

LK Sealing Plug 40 LP

Sealing plug black for unused pipe inlets Ø 40 mm.

LK Sealing Plug Black 40

LK Sealing Plug Black 40

Sealing plug black for unused pipe inlets Ø 40 mm.
