LK Manifold Cabinet UNI 550 FH

The LK Manifold Cabinet UNI 550 FH is for holiday homes and villas where there is no need for a water meter coupling. Made of powder-coated steel plate, white color RAL 9016 and has a waterproof bottom with a 5...

Read more

LKS1882678

LK Manifold Cabinet UNI 550 FH

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Width Height Depth CO₂-EQ. (Kg) Weight (kg) Packaging Item List
188 26 78 550 mm 550 mm 95 mm 18.98 6,6

188 26 78

Width 550 mm
Height 550 mm
Depth 95 mm
CO₂-EQ. (Kg) 18.98
Weight (kg) 6,6
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

The LK Manifold Cabinet UNI 550 FH is for holiday homes and villas where there is no need for a water meter coupling. Made of powder-coated steel plate, white color RAL 9016 and has a waterproof bottom with a 50 mm high front edge.

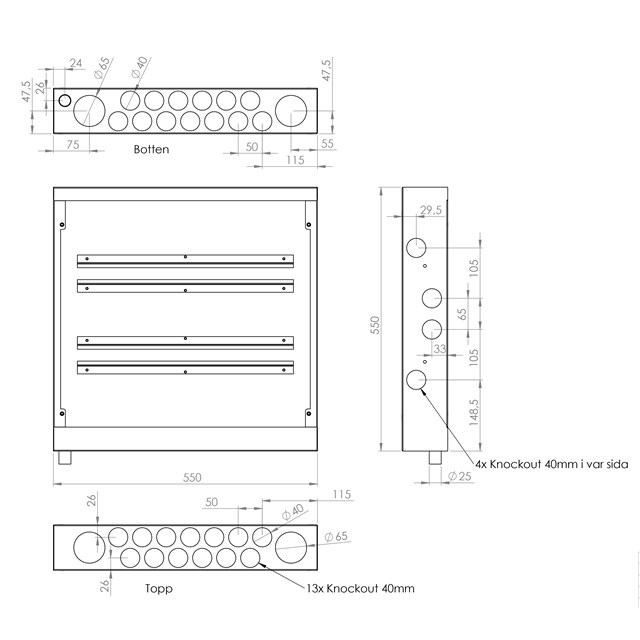

The cabinet is intended for incoming water up to dimension 40 mm max conduit dimension 50 mm, with holes in the bottom to be able to feed through with incoming water from the right or left side. The cabinet has space for two LK Manifolds with the option of connecting up to seven connections. Holes and knock-out holes are also available in the top of the cabinet to enable connection up, as well as the possibility of continuous trunk or feed to eg level 2. The cabinet also has knock-out holes in the side to enable connection from there.

LK Drainage bend V2 complete is enclosed for exit from the wall with the leakage indication from the distribution cabinet. Protective bag to pull over the cabinet during construction is included.

2 LK Pipe Inlet Conduit 32-50 are enclosed, but the cabinet is supplemented with the required number of cabinet conduits. NOTE! Separate article:
• For conduits pipes dimension 25, LK Pipe Inlet Conduit 25 is used, RSK 187 44 83.
• For pipes dimension 12–34, use LK Pipe Inlet Conduit UNI, RSK 187 44 84.

NOTE! In cases where a mains cable is feeded inside the cabinet, the maximum number of sockets may be reduced by one or more sockets.

Documentation

Product sheet

LK Manifold Cabinet UNI 550 FH

EPD

LK Cabinet With LK Frame/Hatch & Base - EPD

Assembly instruction

EN.29.C.29_LK Manifold Cabinet UNI, LK Prefab Cabinet UNI
