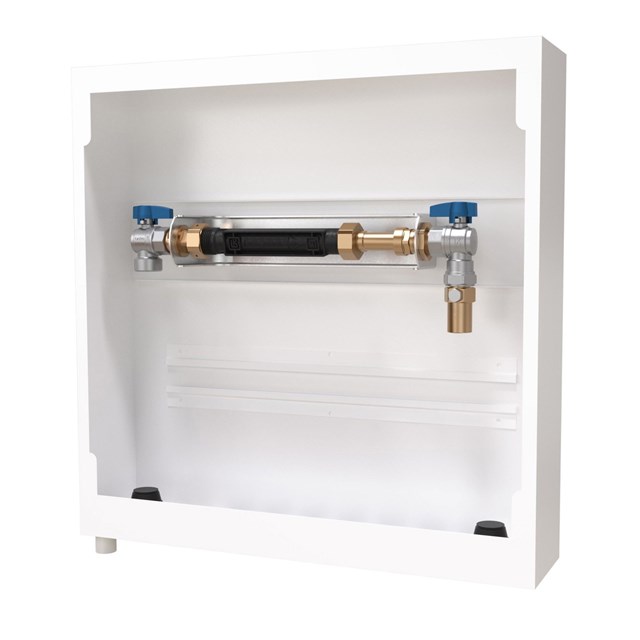

LK Water meter Cabinet UNI

LK Water Meter Cabinet UNI is a leak-proof manifold cabinet with a pre-assembled water meter bracket G1" (DN20), 220/190 mm with supplied brass adapter. The incoming cold water service is fed from below, external connection. G25 in bracket.

Supplied with ball valve, a gauge block for the local authority tap water metre and a controllable check valve. Supplied complete with 2 pcs ø32-50 pipe inlets.

All couplings and ball valves are made from DZR brass. Meets Sweden's SÄKER VATTEN plumbing safety regulations. A protective bag is included to cover the cabinet during building work. In order to assemble and leave space for the drainage bend then the cabinet must be mounted at least 250 mm from the bottom of the cabinet base to the installed floor.
Note! LK Frame with hatch must be ordered separately, RSK 188 13 05 is suitable for LK Water Meter Cabinet UNI. The cabinet can be supplemented with LK Bracket UNI and LK Manifold UNI.

For other versions or for custom-made cabinet solutions please contact LK Prefab, phone: 026 -54 26 40
