LK Water Meter Cabinet UNI XL

LK Water Meter Cabinet UNI XL

With space up to 12 circuits HW and 12 circuits CW
With space for Water Safety Unit LK CubicSecure
The water meter consol is reversable for connection on left or right side

LK Water meter Cabinet UNI XL is a leak-proof manifold cabinet with a pre-assembled water meter bracket G1"" (DN20), 220/190 mm with supplied brass adapter. The incoming cold water service is fed from below, ex...

Variants
Detailed Information
Documentation
Related Products

Variants

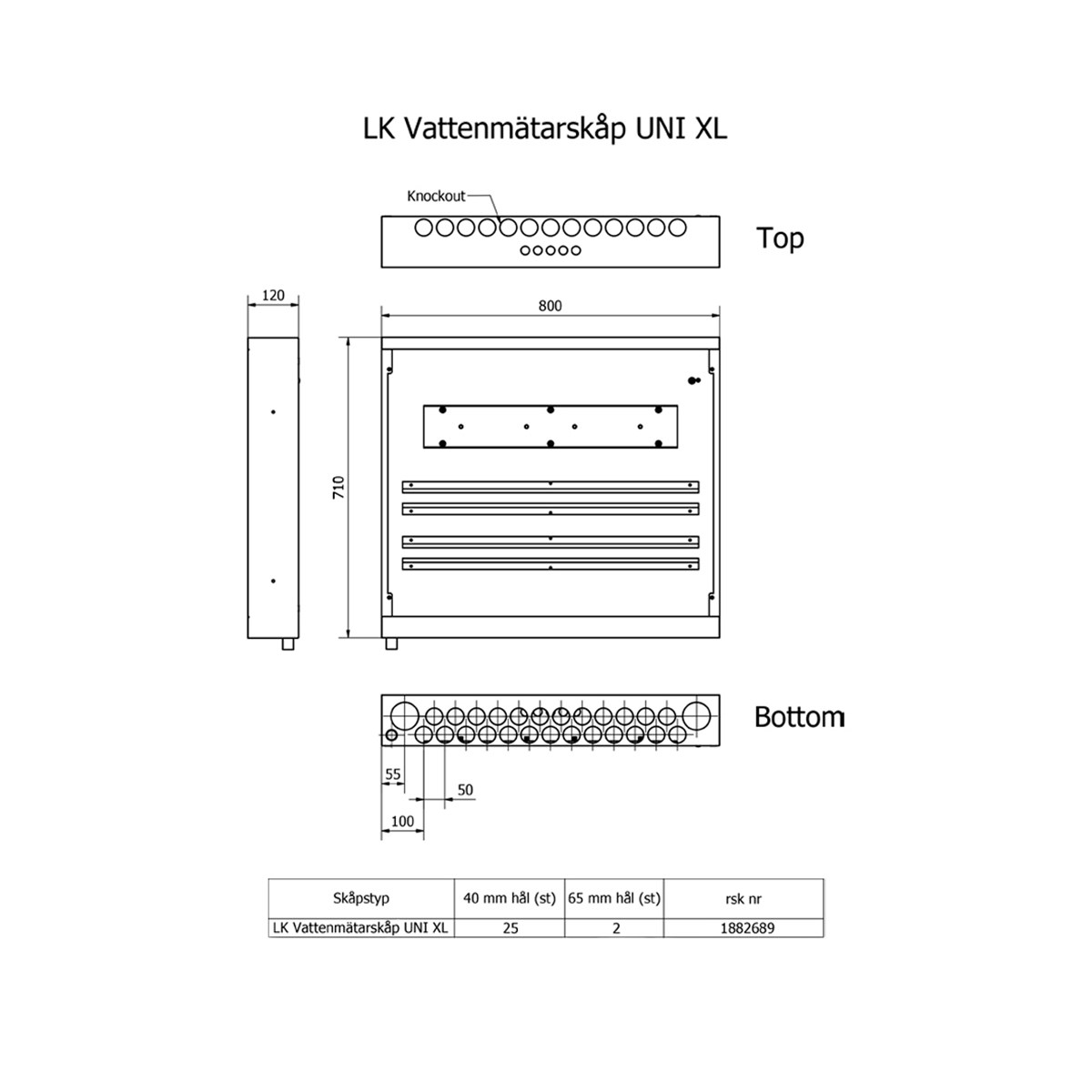

Article	Width	Height	Depth	Weight (kg)	Packaging	Item List
188 26 89	800 mm	710 mm	120 mm	10

Width	800 mm
Height	710 mm
Depth	120 mm
Weight (kg)	10
Packaging
Item list

Detailed Information

Description

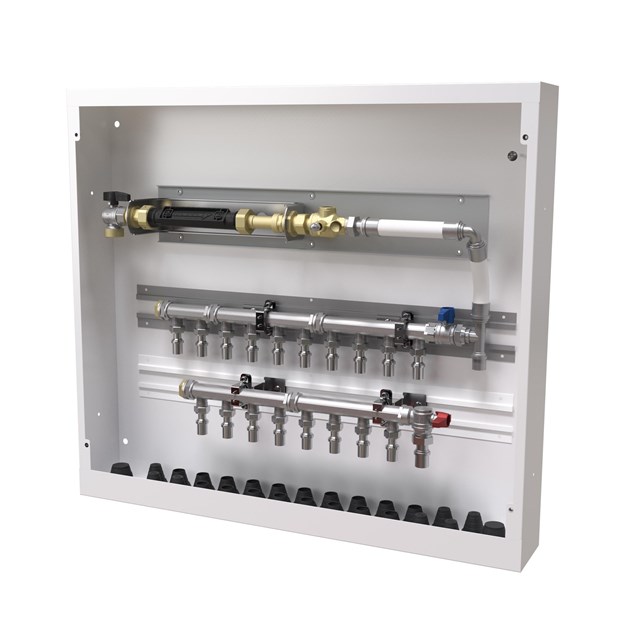

LK Water meter Cabinet UNI XL is a leak-proof manifold cabinet with a pre-assembled water meter bracket G1"" (DN20), 220/190 mm with supplied brass adapter. The incoming cold water service is fed from below, external connection. G25 in bracket.

Supplied with ball valve, a gauge block for the local authority tap water metre and a controllable check valve. Supplied complete with 2 pcs ø32-50 mm and 25 pcs ø20-25 mm pipe inlets.

All couplings and ball valves are made from DZR brass. Meets Sweden's SÄKER VATTEN plumbing safety regulations. A protective bag is included to cover the cabinet during building work. In order to assemble and leave space for the drainage bend then the cabinet must be mounted at least 250 mm from the bottom of the cabinet base to the installed floor.
Note! LK Frame with hatch must be ordered separately, RSK 243 46 79 is suitable for LK Water Meter Cabinet UNI XL. The cabinet can be supplemented with LK Bracket UNI and LK Manifold UNI.

For other versions or for custom-made cabinet solutions please contact LK Prefab, phone: 026 -54 26 40"

Documentation

Product sheet

LK Water Meter Cabinet UNI XL

Assembly instruction

EN.29.C.47_LK Water meter Cabinet UNI

×

Article 188 26 89

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590062936	Case	120	800	710	10

Article 188 26 89

Quantity	1
EAN	7331590062936
Packaging	Case
Depth	120
Width	800
Height	710
Weight (kg)	10
