LK Angle Wallbox UNI, single

LK Angle Wallbox UNI, single

For pipe exit points in the wall with at least 45 mm cavity in the wall. The wall box shank has a diameter of 54 mm. The minimum c/c distance between pipe exits is 80 mm. Use LK Connection couplers Art. no 1...

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Dim. conduit (mm)	For pipe dim.	Packaging	Item List
188 24 04	25	AX16

Dim. conduit (mm)	25
For pipe dim.	AX16
Packaging
Item list

Detailed Information

Description

For pipe exit points in the wall with at least 45 mm cavity in the wall.

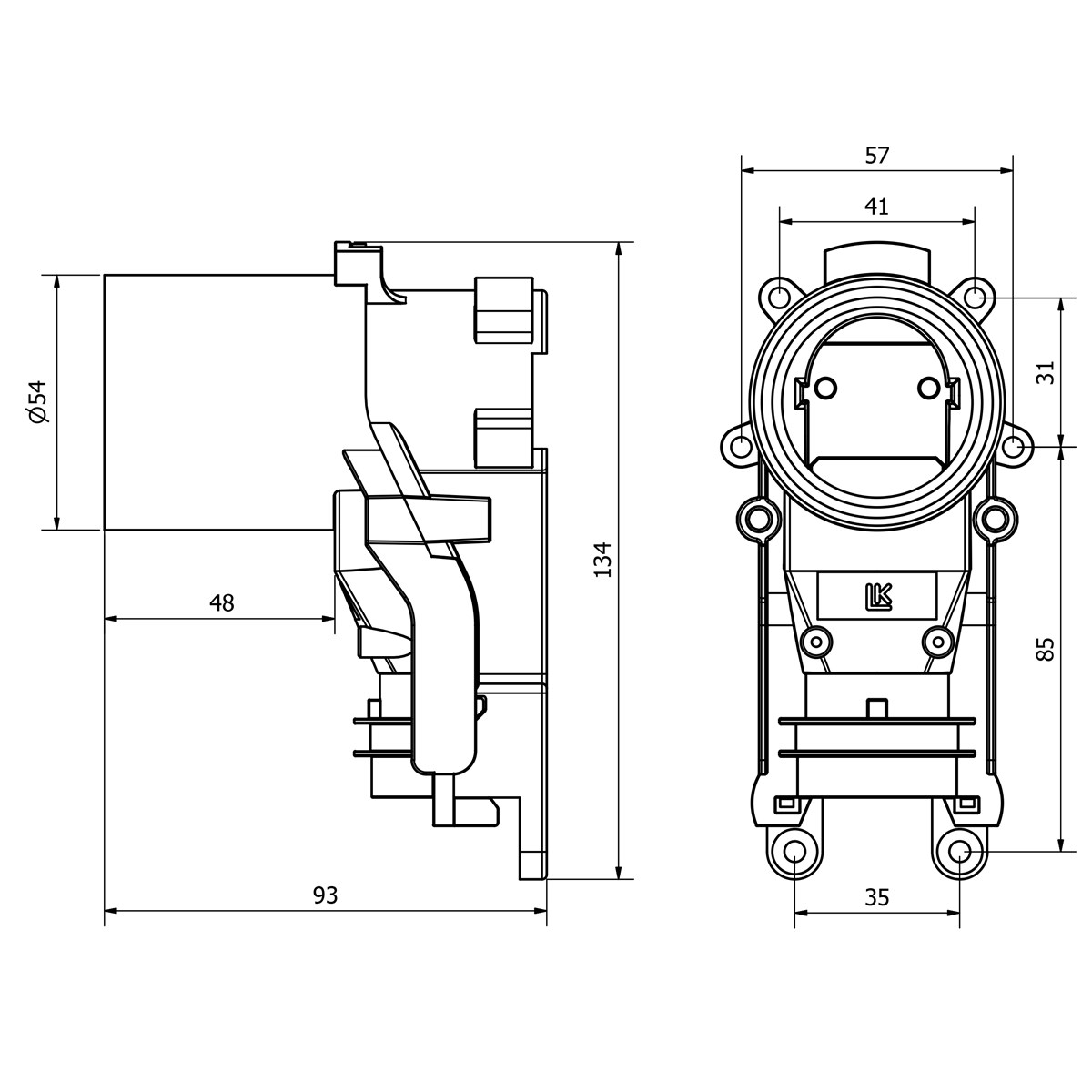

The wall box shank has a diameter of 54 mm.

The minimum c/c distance between pipe exits is 80 mm.

Use LK Connection couplers Art. no 188 18 45, 188 18 47, 188 18 48, 188 18 49, 188 18 50, 188 18 51, 188 18 52, 188 18 53, 188 18 54 eller 188 18 55 to connect to mixers and water taps.

NT VVS 129 approved with LK PE-X Universal pipe 16 mm.

Please note that connection with LK PAL Universal pipe does not meet requirements in NT VVS 129 on inspection and interchangeability.

Documentation

Product sheet

LK Angle Wallbox UNI, single

×

Article 188 24 04

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590053750	Bag	95	50	130	0.202
40	7331590053828	Case	500	300	300	9.5

Article 188 24 04

Quantity	1
EAN	7331590053750
Packaging	Bag
Depth	95
Width	50
Height	130
Weight (kg)	0.202

Quantity	40
EAN	7331590053828
Packaging	Case
Depth	500
Width	300
Height	300
Weight (kg)	9.5
