LKS1882328

LK Mounting fixture, concrete

LK Mounting Tool, concrete – facilitates pipe outlets from cast-in-situ concrete walls. The mounting tool can be attached to a front or rear mould. Includes holes so that two plates and a spacer can be fitted u...

Read more

LKS1882328

LK Mounting fixture, concrete

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Length Width Height c/c Packaging Item List
188 23 28 313 mm 200 mm 16 mm 150/160 mm

188 23 28

Length 313 mm
Width 200 mm
Height 16 mm
c/c 150/160 mm
Packaging
Item list

Detailed Information

Description

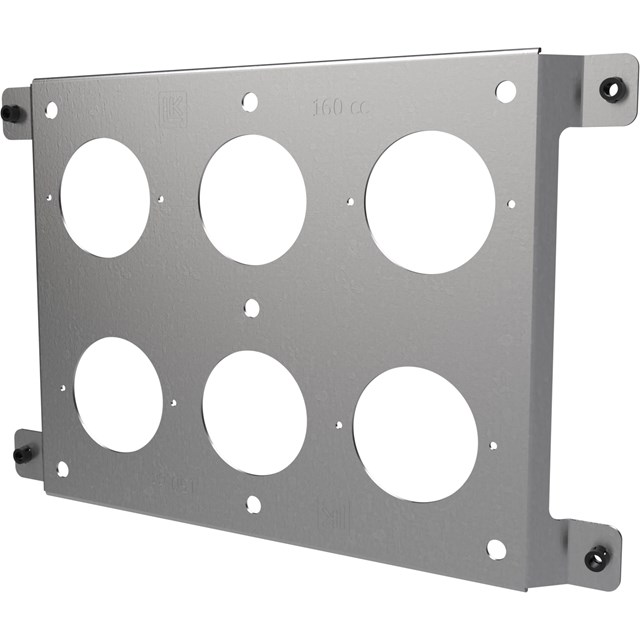

LK Mounting Tool, concrete – facilitates pipe outlets from cast-in-situ concrete walls. The mounting tool can be attached to a front or rear mould. Includes holes so that two plates and a spacer can be fitted using a threaded rod and flange nut.
The bend support is designed for use with single LK Wall Box for concrete.
LK Wall Box for concrete includes assembly options c-c 150 or 160 mm. The plate is reversible and clearly labelled.
The bend support also has an option for attaching a dy 50 mm drain pipe, e.g. from a washbasin.
The panel is manufactured from 1.25 mm surface-treated steel sheet.

Documentation

Product sheet

LK Mounting fixture, concrete

Assembly instruction

LK Wallbox for concrete AX16

Related Products

Intended for

LK Wall Box for concrete

LK Wall Box for concrete

LK Wall Box for concrete single and double are intended for precast or cast on site concrete walls. ...
