LKS0494

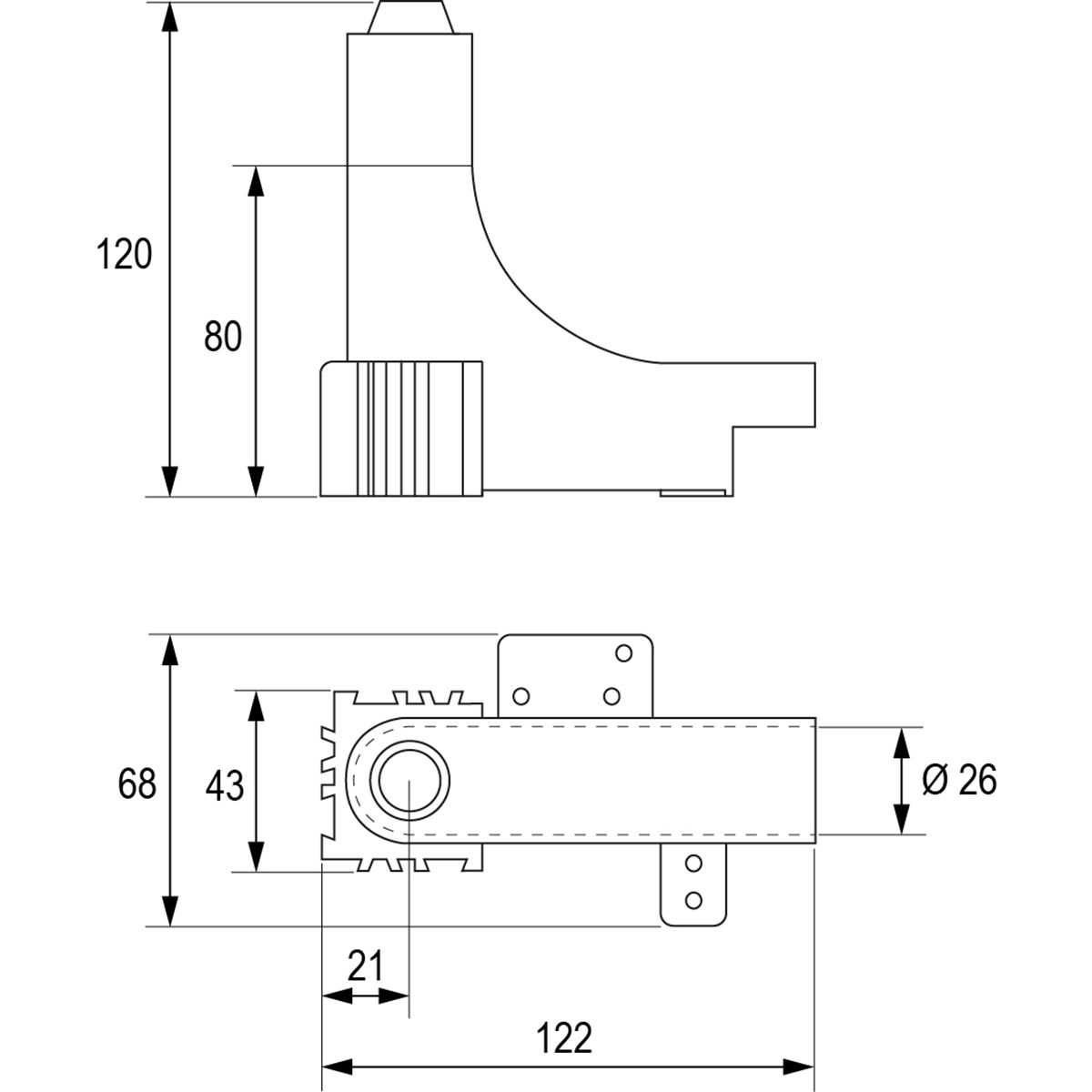

LK Radiator Bend Support

For LK Universal PiP with conduit pipe dim. 25. Used for pipe exits from floors and designed to be screwed or nailed into the building frame. Reinforced design. Equipped with O-rings for attachment to the condu...

Read more

LKS0494

LK Radiator Bend Support

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article For conduit dim. CO₂-EQ. (Kg) Packaging Item List
481 43 67 25 mm 1.9

481 43 67

For conduit dim. 25 mm
CO₂-EQ. (Kg) 1.9
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

For LK Universal PiP with conduit pipe dim. 25. Used for pipe exits from floors and designed to be screwed or nailed into the building frame. Reinforced design. Equipped with O-rings for attachment to the conduit before being pushed through the radiator bend support and the leakage indicator at the top. Min 40 mm between pipes.

Documentation

Product sheet

LK Radiator Bend Support

Assembly instruction

LK Radiator Bend Support and LK Pipe Sleeve

EPD

LK Pipe- holder or protector, made of PA6 - EPD
