LKS1882217

LK PressPex Press Connection - Cu22

PressPex fitting with loose nut for connecting Cupper pipe to the LK Manifold UNI or an LK Ball Valve with a 3/4” male thread EuroCone. When using brass tube connector (to EN 12164, CW602N) always refer to manu...

Read more

LKS1882217

LK PressPex Press Connection - Cu22

  • Variants
  • Detailed Information
  • Documentation

Variants

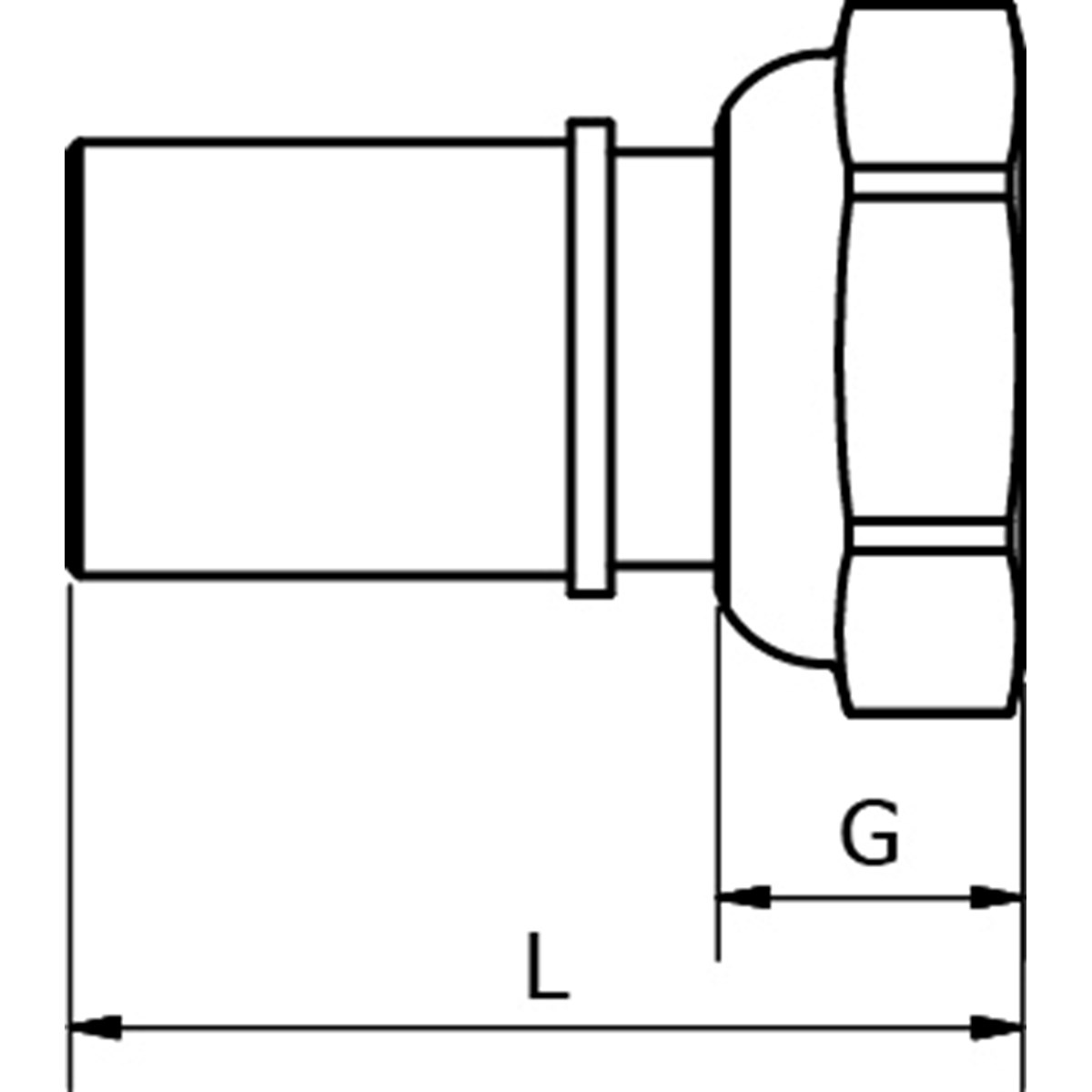

Article Design Nipple conn. G mm L mm Packaging Item List
188 22 17 ¾” – CU22 3/4" EuroCone 11 48.5

188 22 17

Design ¾” – CU22
Nipple conn. 3/4" EuroCone
G mm 11
L mm 48.5
Packaging
Item list

Detailed Information

Description

PressPex fitting with loose nut for connecting Cupper pipe to the LK Manifold UNI or an LK Ball Valve with a 3/4” male thread EuroCone. When using brass tube connector (to EN 12164, CW602N) always refer to manufacturer´s installation/fitting instructions. For LK >B

Documentation

Product sheet

LK PressPex Press Connection - Cu22
