LKS1882501

LK Manifold UNI PushFit AX 2+2

Extendable manifold for heating and tap water systems. Assembled on the wall in LK Manifold bracket or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel-plated. Manifolds U...

Read more

LKS1882501

LK Manifold UNI PushFit AX 2+2

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article CO₂-EQ. (Kg) Packaging Item List
188 25 01 1.45

188 25 01

CO₂-EQ. (Kg) 1.45
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

Extendable manifold for heating and tap water systems. Assembled on the wall in LK Manifold bracket or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel-plated.

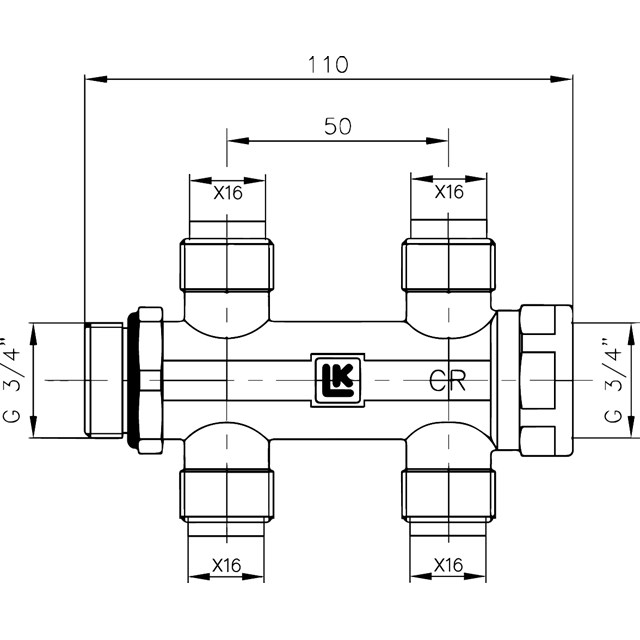

Manifolds UNI 2+2-X16 have connection ¾" (male and female thread) for feed pipe and PE-X 16 mm PushFit connection with c/c 50 mm on the outlets.

All types have O-ring seal on the male ¾" side for feed pipe, which facilitates the assembly of 2 manifolds without additional sealing.

The manifold is delivered complete with support sleeves for PushFit. Note! PushFit connections are only intended for LK PE-X Universal Pipe.

Documentation

Product sheet

LK Manifold UNI PushFit AX 2+2

Assembly instruction

LK PushFit AX

EPD

LK PushFit Fittings and Manifolds - EPD

Related Products

Accessories

LK Ball Valve UNI PushFit AX16

LK Ball Valve UNI PushFit AX16

A ball valve with a 16 mm brass insert that is suited to the outlet of a LK Manifold or a LK Couplin...

LK Ball Valve 801 straight 3/4" int/ext

LK Ball Valve 801 straight 3/4" int/ext

Isolation valve manufactured from dezincification resistant brass with G20 threaded external Eurocon...

Ball Valve 703 angle 3/4" int/ext

Ball Valve 703 angle 3/4" int/ext

Isolation valve manufactured from dezincification resistant brass with G20 threaded external Eurocon...

LK Disassembly tool PushFit

LK Disassembly tool PushFit

Disassembly tool for LK PushFit coupling.

LK Pipe Grip Plier 16-32

LK Pipe Grip Plier 16-32

LK Pipe Grip Pliers 16-32 facilitate assembly of LK PE-X and LK PAL Universal pipes in LK PushFit co...

LK Ball Valve 821 ECO, 3/4"

LK Ball Valve 821 ECO, 3/4"

Isolation valve manufactured from lead free dezincification resistant brass with 3/4" threaded exter...
