LK Systems
>
Products
>
Universal
>
Manifolds
>
Push AX
>
LK Manifold UNI PushFit AX

LK Manifold UNI PushFit AX

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Designation	No. of outlets	CO₂-EQ. (Kg)

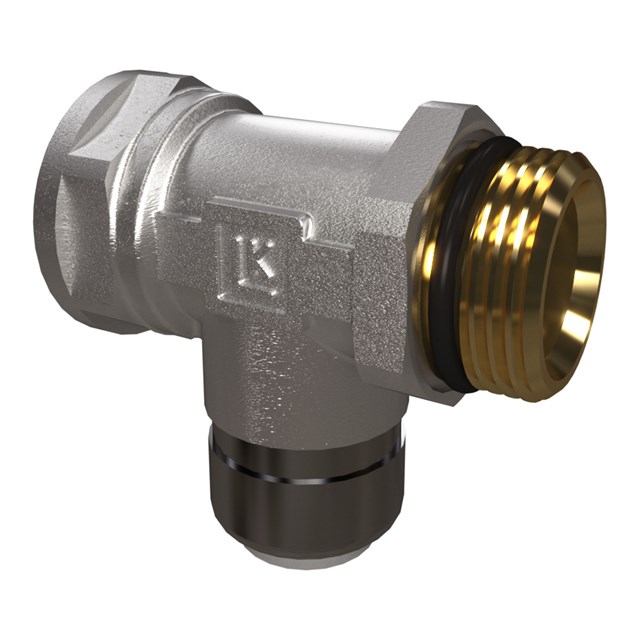

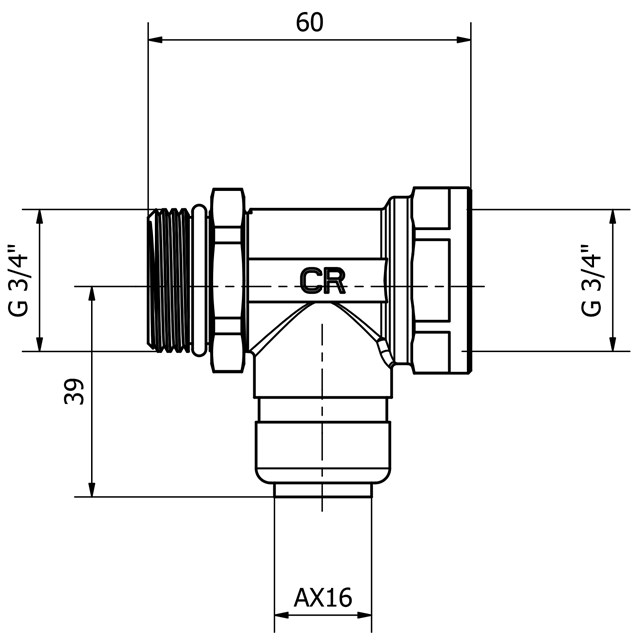

188 25 23	UNI Push 1-AX16	1 x PushFit AX16	0.54

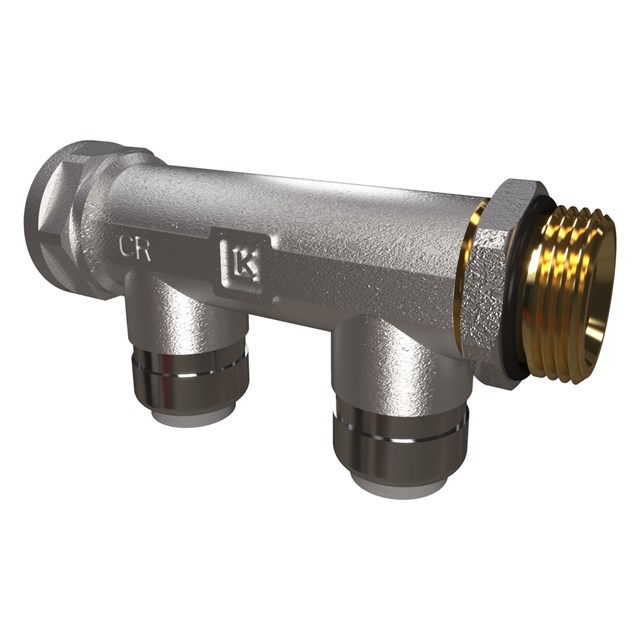

188 24 99	UNI Push 2-AX16	2 st PushFit AX16	1.05

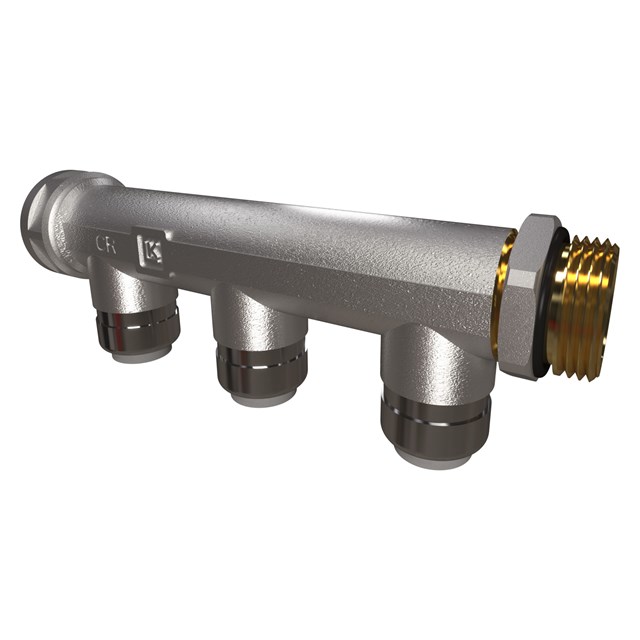

188 25 00	UNI Push 3-AX16	3 st PushFit AX16	1.36

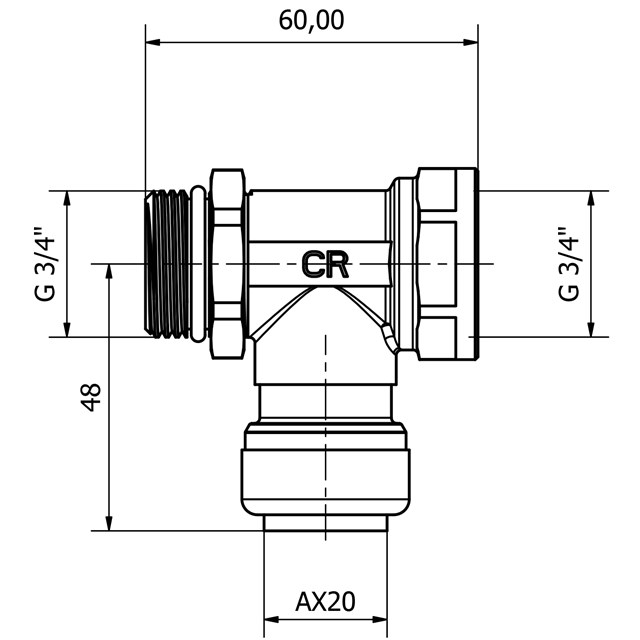

188 25 24	UNI Push 1-AX20	1 x PushFit AX20	0.57

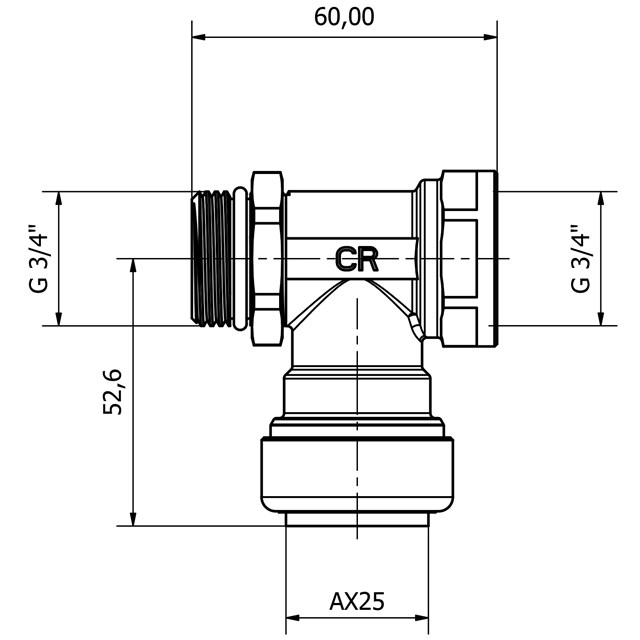

188 25 25	UNI Push 1-AX25	1 x PushFit AX25	0.61

Designation	UNI Push 1-AX16
No. of outlets	1 x PushFit AX16
CO₂-EQ. (Kg)	0.54
Packaging
Item list

Designation	UNI Push 2-AX16
No. of outlets	2 st PushFit AX16
CO₂-EQ. (Kg)	1.05
Packaging
Item list

Designation	UNI Push 3-AX16
No. of outlets	3 st PushFit AX16
CO₂-EQ. (Kg)	1.36
Packaging
Item list

Designation	UNI Push 1-AX20
No. of outlets	1 x PushFit AX20
CO₂-EQ. (Kg)	0.57
Packaging
Item list

Designation	UNI Push 1-AX25
No. of outlets	1 x PushFit AX25
CO₂-EQ. (Kg)	0.61
Packaging
Item list

Detailed Information

Description

Extendable manifold for heating and tap water systems. Assembled on the wall in LK Manifold bracket or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel-plated.

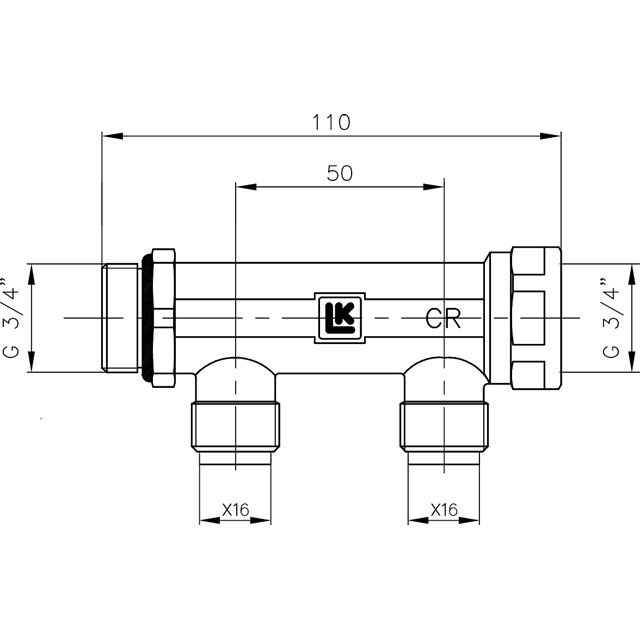

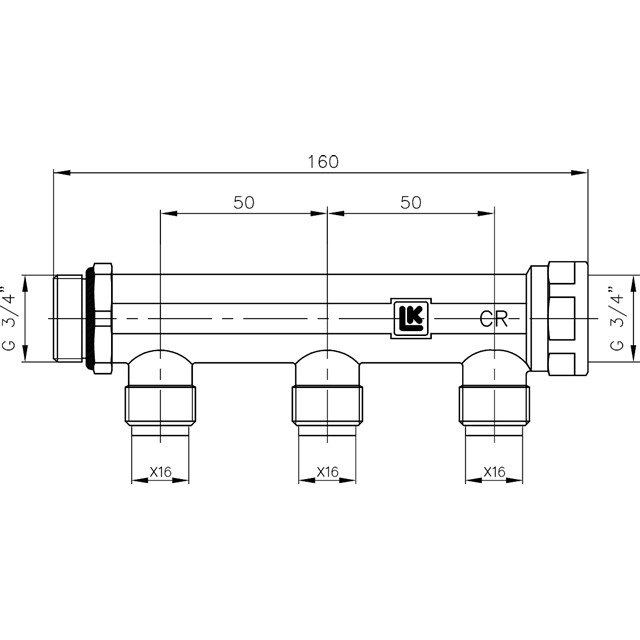

Manifolds UNI 2-X16 and 3-X16 have connection ¾" (male and female thread) for feed pipe and PE-X 16 mm PushFit connection with c/c 50 mm on the outlets.

All types have o-ring seal on the male ¾" side for feed pipe, which facilitates the assembly of 2 manifolds without additional sealing.

All manifolds are delivered complete with support sleeves for PushFit. Note! PushFit connections are only intended for LK PE-X Universal Pipe.

Documentation

Product sheet

LK Manifold UNI PushFit AX

Assembly instruction

LK PushFit AX

EPD

LK PushFit Fittings and Manifolds - EPD

Article 188 25 23

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054467	Unpacked	60	25	50	0.163
5	7331590056409	Box	180	70	80	0.85
80	7331590056942	Case	375	320	180	13.1

Article 188 25 23

Quantity	1
EAN	7331590054467
Packaging	Unpacked
Depth	60
Width	25
Height	50
Weight (kg)	0.163

Quantity	5
EAN	7331590056409
Packaging	Box
Depth	180
Width	70
Height	80
Weight (kg)	0.85

Quantity	80
EAN	7331590056942
Packaging	Case
Depth	375
Width	320
Height	180
Weight (kg)	13.1

Article 188 24 99

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590051640	Box	125	60	40	0.26
48	7331590051657	Case	375	270	180	14.6

Article 188 24 99

Quantity	1
EAN	7331590051640
Packaging	Box
Depth	125
Width	60
Height	40
Weight (kg)	0.26

Quantity	48
EAN	7331590051657
Packaging	Case
Depth	375
Width	270
Height	180
Weight (kg)	14.6

Article 188 25 00

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590051664	Box	180	60	40	0.396
32	7331590051671	Case	375	270	180	13.5

Article 188 25 00

Quantity	1
EAN	7331590051664
Packaging	Box
Depth	180
Width	60
Height	40
Weight (kg)	0.396

Quantity	32
EAN	7331590051671
Packaging	Case
Depth	375
Width	270
Height	180
Weight (kg)	13.5

Article 188 25 24

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054474	Unpacked	60	30	60	0.181
5	7331590056416	Box	180	70	80	0.925
80	7331590056959	Case	375	320	180	14.6

Article 188 25 24

Quantity	1
EAN	7331590054474
Packaging	Unpacked
Depth	60
Width	30
Height	60
Weight (kg)	0.181

Quantity	5
EAN	7331590056416
Packaging	Box
Depth	180
Width	70
Height	80
Weight (kg)	0.925

Quantity	80
EAN	7331590056959
Packaging	Case
Depth	375
Width	320
Height	180
Weight (kg)	14.6

Article 188 25 25

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054481	Unpacked	60	38	70	0.203
5	7331590056423	Box	180	70	80	1.05
80	7331590056966	Case	372	320	180	16.3

Article 188 25 25

Quantity	1
EAN	7331590054481
Packaging	Unpacked
Depth	60
Width	38
Height	70
Weight (kg)	0.203

Quantity	5
EAN	7331590056423
Packaging	Box
Depth	180
Width	70
Height	80
Weight (kg)	1.05

Quantity	80
EAN	7331590056966
Packaging	Case
Depth	372
Width	320
Height	180
Weight (kg)	16.3
