LK Manifold End UNI

Manifold for heating and tap water systems which is not extendable. Used as a last manifold in when not wanting to expand further. Attached to the wall in the LK Manifold Bracket, or in LK Manifold Cabinet UNI....

Read more

LKS1881205

LK Manifold End UNI

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Designation No. of outlets CO₂-EQ. (Kg) Packaging Item List
188 12 05 UNI 2-½" 2 pcs ½" 0.57
188 12 06 UNI 3-½" 3 pcs ½" 0.87

188 12 05

Designation UNI 2-½"
No. of outlets 2 pcs ½"
CO₂-EQ. (Kg) 0.57
Packaging
Item list

188 12 06

Designation UNI 3-½"
No. of outlets 3 pcs ½"
CO₂-EQ. (Kg) 0.87
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

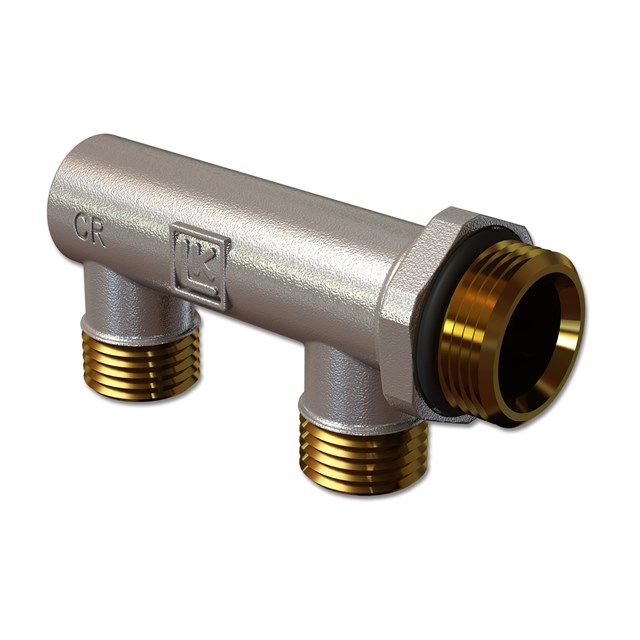

Manifold for heating and tap water systems which is not extendable. Used as a last manifold in when not wanting to expand further. Attached to the wall in the LK Manifold Bracket, or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel plated.

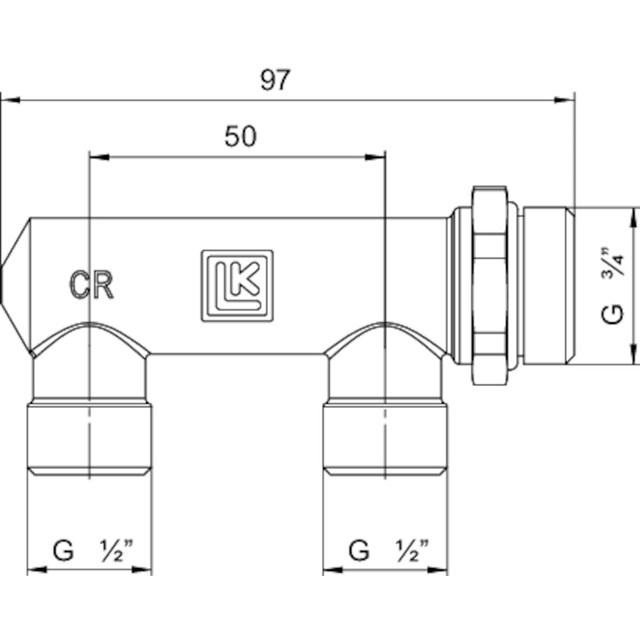

The manifold has ¾" (male) tread for feed pipe and ½" c/c 50 mm on the outlets.

Pipe X16, A16, X20 and A20 may be connected to the ¾" outlets with both LK Compression Connection and LK PressPex Press Connection.

Documentation

Product sheet

LK Manifold End UNI

EPD

LK Manifolds UNI & LK Mini Manifolds - EPD

Related Products

Accessories

LK PI Tube Adapter AX16

LK PI Tube Adapter AX16

For connection of LK Universal Pipe X16 and A16 with LK Conex Connection CU15 and to LK Manifold UNI...

LK Connection Coupling

LK Connection Coupling

For connecting the LK Universal Pipe to the LK Manifold UNI. Art. no. 481 43 73 is also intended for...

LK PressPex Press Connection

LK PressPex Press Connection

PressPex fitting with loose nut for connecting LK PE-X and PAL Universal pipe to male EuroCone on e....

LK Ball Valve 801 straight 3/4" int/ext

LK Ball Valve 801 straight 3/4" int/ext

Isolation valve manufactured from dezincification resistant brass with G20 threaded external Eurocon...

Ball Valve 703 angle 3/4" int/ext

Ball Valve 703 angle 3/4" int/ext

Isolation valve manufactured from dezincification resistant brass with G20 threaded external Eurocon...

LK Ball Valve 821 ECO, 3/4"

LK Ball Valve 821 ECO, 3/4"

Isolation valve manufactured from lead free dezincification resistant brass with 3/4" threaded exter...

Spare Parts

LK O-ring

LK O-ring

O-ring for male ¾" on LK Manifold UNI and UNI-Valve.
