LK Systems
>
Products
>
Universal
>
Manifolds
>
Standard
>
LK Manifold UNI

LK Manifold UNI

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Designation	No. of outlets	CO₂-EQ. (Kg)
188 24 16 Eco	UNI 1-1/2"	1 pc 1/2"	0.46
187 06 88	UNI 2-½"	2 x ½"	0.75
187 06 90	UNI 3-½"	3 x ½"	1.05
187 06 91	UNI 4-½"	4 x ½"	1.45
188 24 17 Eco	UNI 5-1/2"	5 pcs 1/2"	1.39
187 06 89	UNI 2-¾"	2 x ¾"	0.79

Designation	UNI 1-1/2"
No. of outlets	1 pc 1/2"
CO₂-EQ. (Kg)	0.46
Packaging
Item list

Designation	UNI 2-½"
No. of outlets	2 x ½"
CO₂-EQ. (Kg)	0.75
Packaging
Item list

Designation	UNI 3-½"
No. of outlets	3 x ½"
CO₂-EQ. (Kg)	1.05
Packaging
Item list

Designation	UNI 4-½"
No. of outlets	4 x ½"
CO₂-EQ. (Kg)	1.45
Packaging
Item list

Designation	UNI 5-1/2"
No. of outlets	5 pcs 1/2"
CO₂-EQ. (Kg)	1.39
Packaging
Item list

Designation	UNI 2-¾"
No. of outlets	2 x ¾"
CO₂-EQ. (Kg)	0.79
Packaging
Item list

Detailed Information

Description

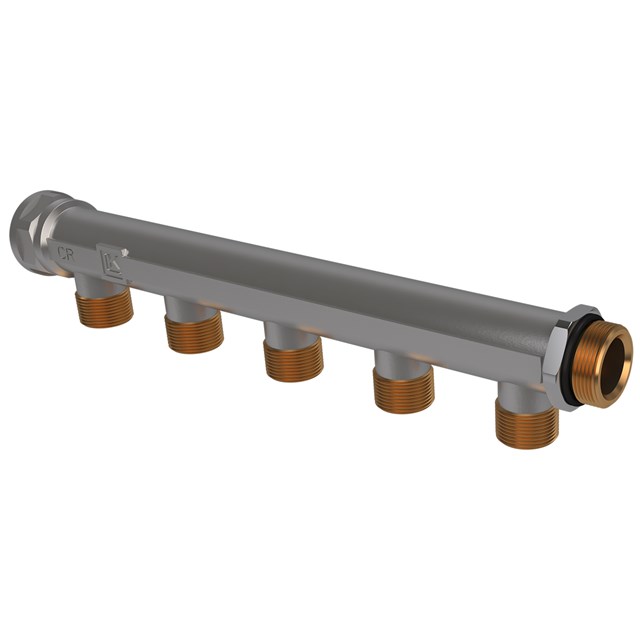

Extension manifold for heating and potable water systems. Attached to the wall in the LK Manifold Bracket, or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel plated.

Manifold UNI 1-½", UNI 2-½", UNI 3-½", UNI 4-½" and UNI 5-½" have connections ¾" (male and female) for primary pipe and connection ½" c/c 50 mm male on the outlets.

Manifold UNI 2-¾" has connection ¾" (male and female) for primary pipe and connection ¾" c/c 50 mm male on the outlets.

The manifold has an o-ring mounted on the male thread ¾" side, enabling connection to 2 manifolds together without further sealing.

Pipe X16, A16, X20 and A20 may be connected to the ¾" outlets with both LK Compression Connection and LK PressPex Press Connection.

Documentation

Product sheet

LK Manifold UNI

EPD

LK Manifolds UNI & LK Mini Manifolds - EPD

EPD

LK Manifold UNI Eco - EPD

Article 188 24 16

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590053804	Bag	250	120	60	0.18
10	7331590058021	Case	200	116	72	1.5

Article 188 24 16

Quantity	1
EAN	7331590053804
Packaging	Bag
Depth	250
Width	120
Height	60
Weight (kg)	0.18

Quantity	10
EAN	7331590058021
Packaging	Case
Depth	200
Width	116
Height	72
Weight (kg)	1.5

Article 187 06 88

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590002192	Bag	47	110	30	0.2
10	7331590032830	Case	180	135	90	5.2

Article 187 06 88

Quantity	1
EAN	7331590002192
Packaging	Bag
Depth	47
Width	110
Height	30
Weight (kg)	0.2

Quantity	10
EAN	7331590032830
Packaging	Case
Depth	180
Width	135
Height	90
Weight (kg)	5.2

Article 187 06 90

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590002185	Bag	47	160	30	0.32
10	7331590032847	Case	200	155	100	8.3

Article 187 06 90

Quantity	1
EAN	7331590002185
Packaging	Bag
Depth	47
Width	160
Height	30
Weight (kg)	0.32

Quantity	10
EAN	7331590032847
Packaging	Case
Depth	200
Width	155
Height	100
Weight (kg)	8.3

Article 187 06 91

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054795	Bag	47	210	30	0.49
10	7331590002178	Case	250	200	100	11.1

Article 187 06 91

Quantity	1
EAN	7331590054795
Packaging	Bag
Depth	47
Width	210
Height	30
Weight (kg)	0.49

Quantity	10
EAN	7331590002178
Packaging	Case
Depth	250
Width	200
Height	100
Weight (kg)	11.1

Article 188 24 17

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590053811	Bag	250	120	60	0.55
10	7331590053880	Case	180	135	90	5.5

Article 188 24 17

Quantity	1
EAN	7331590053811
Packaging	Bag
Depth	250
Width	120
Height	60
Weight (kg)	0.55

Quantity	10
EAN	7331590053880
Packaging	Case
Depth	180
Width	135
Height	90
Weight (kg)	5.5

Article 187 06 89

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590022442	Bag	250	120	60	0.29
10	7331590026457	Case	250	200	200	7.6

Article 187 06 89

Quantity	1
EAN	7331590022442
Packaging	Bag
Depth	250
Width	120
Height	60
Weight (kg)	0.29

Quantity	10
EAN	7331590026457
Packaging	Case
Depth	250
Width	200
Height	200
Weight (kg)	7.6
