LK Manifold UNI-25-c/c 100

Intended for the distribution of larger flows and where greater space between outlet pipes is required, e.g. space for flow and temperature gauges. The manifold has primary connection 1” (male and female) and ¾...

Read more

LKS0546

LK Manifold UNI-25-c/c 100

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Designation No. of outlets CO₂-EQ. (Kg) Packaging Item List
187 58 91 UNI 2-¾" 2 x ¾" 1.5
187 58 92 UNI 3-¾" 3 x ¾" 2.35

187 58 91

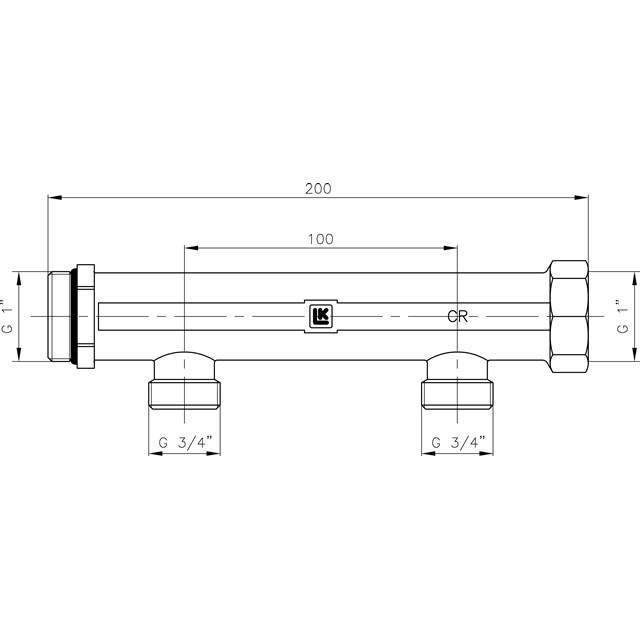

Designation UNI 2-¾"
No. of outlets 2 x ¾"
CO₂-EQ. (Kg) 1.5
Packaging
Item list

187 58 92

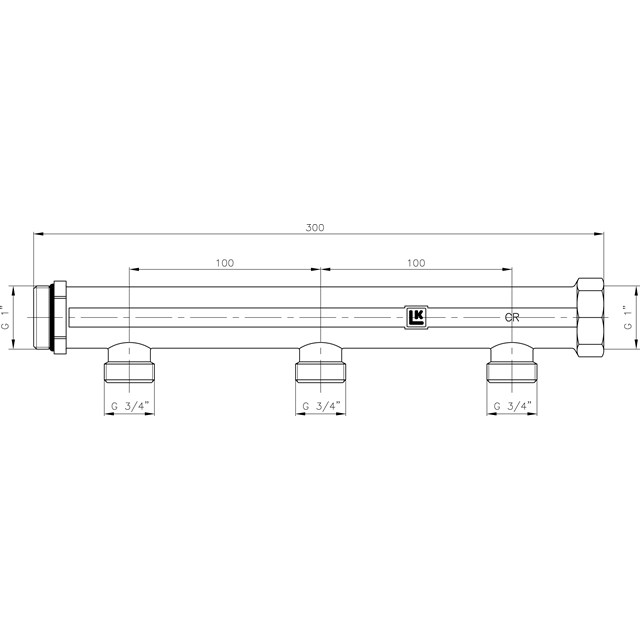

Designation UNI 3-¾"
No. of outlets 3 x ¾"
CO₂-EQ. (Kg) 2.35
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

Intended for the distribution of larger flows and where greater space between outlet pipes is required, e.g. space for flow and temperature gauges. The manifold has primary connection 1” (male and female) and ¾” male c/c 100 mm Eurocone for each outlet port. Manufactured from dezincification resistant brass.

The manifold has an o-ring mounted on the male thread 1“ side, enabling you to connect 2 manifolds together without further sealing.

The distributor can be mounted in LK UNI cabinets if you remove the inserts in the console.
LK Bracket VKF/VKF-i 2419490 can be used to mount the manifold on wall.

Documentation

Product sheet

LK Manifold UNI-25-c/c 100

EPD

LK Manifolds UNI & LK Mini Manifolds - EPD

Related Products

Accessories

LK Bracket multi G25-G40

LK Bracket multi G25-G40

Bracket for LK Manifold UNI-25-c/c 50 and LK Manifold UNI-25-c/c 100 and as a spare part for LK Mani...

LK Ball Valve 434, straight

LK Ball Valve 434, straight

Isolation valve manufactured from dezincification resistant brass for LK Manifold UNI-25.
