LK Systems
>
Products
>
Universal
>
Manifolds
>
Standard
>
LK Manifold UNI-Valve

LK Manifold UNI-Valve

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Designation	No. of outlets	CO₂-EQ. (Kg)
187 58 93	UNI 2-½"-Valve	2 x ½"	1.08
187 58 94	UNI 3-½"-Valve	3 x ½"	1.62
187 82 17	UNI 4-½"-Valve	4 x ½"	2.15

Designation	UNI 2-½"-Valve
No. of outlets	2 x ½"
CO₂-EQ. (Kg)	1.08
Packaging
Item list

Designation	UNI 3-½"-Valve
No. of outlets	3 x ½"
CO₂-EQ. (Kg)	1.62
Packaging
Item list

Designation	UNI 4-½"-Valve
No. of outlets	4 x ½"
CO₂-EQ. (Kg)	2.15
Packaging
Item list

Detailed Information

Description

Extension manifold for heating and potable water systems with in-built isolation valve for each outlet port. It can be attached to the wall using the LK Manifold Bracket, or in LK Manifold Cabinet UNI. Manufactured from dezincification resistant brass, nickel plated.

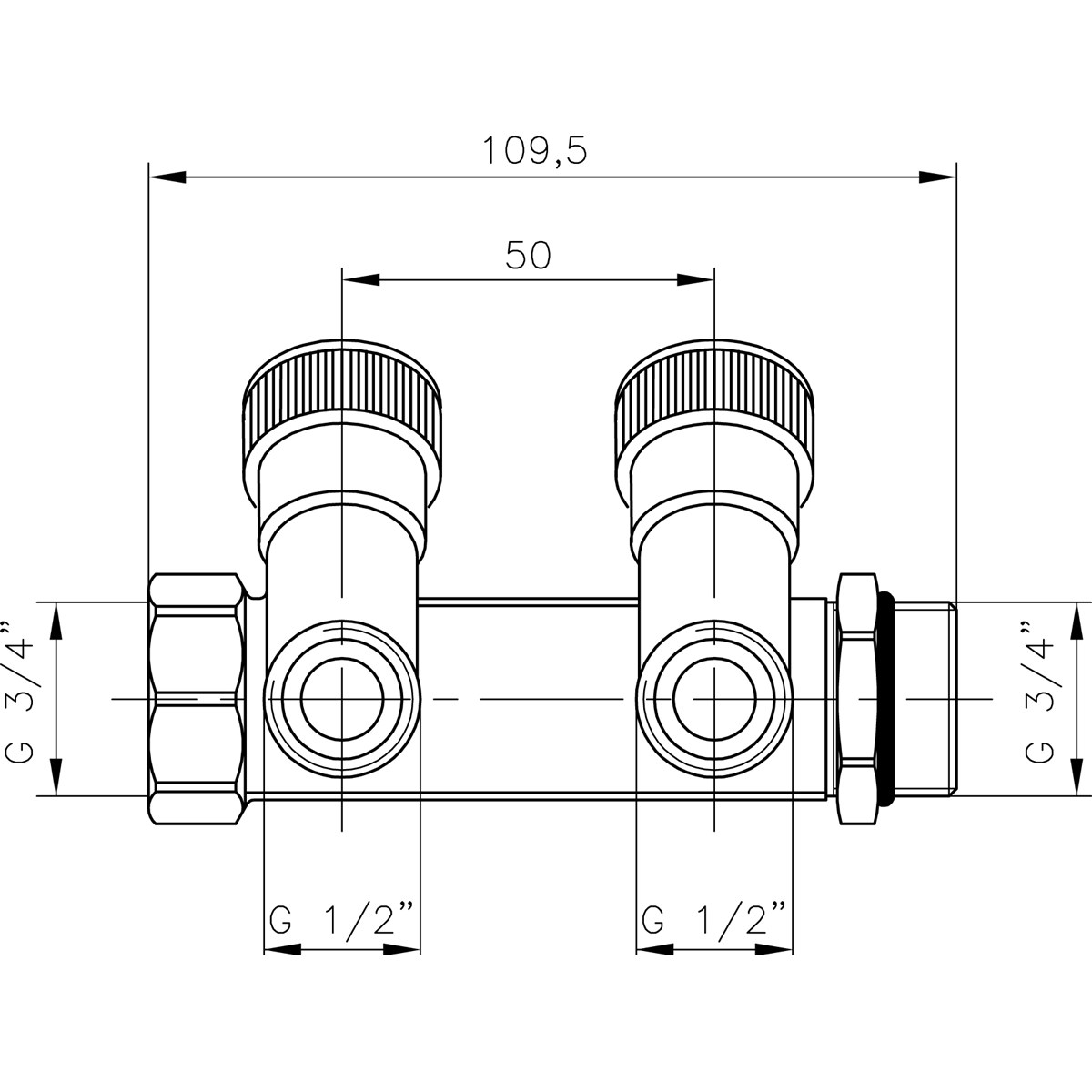

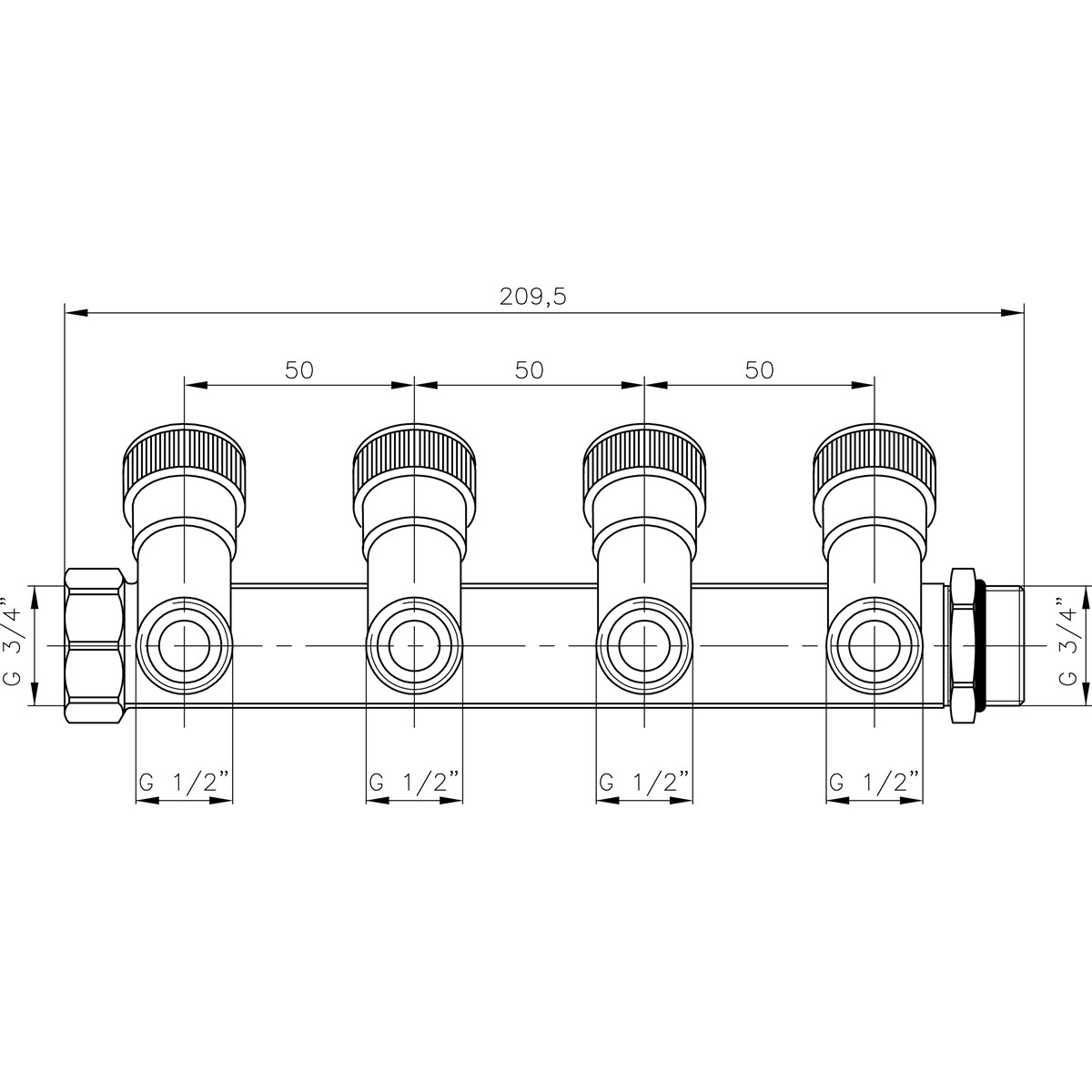

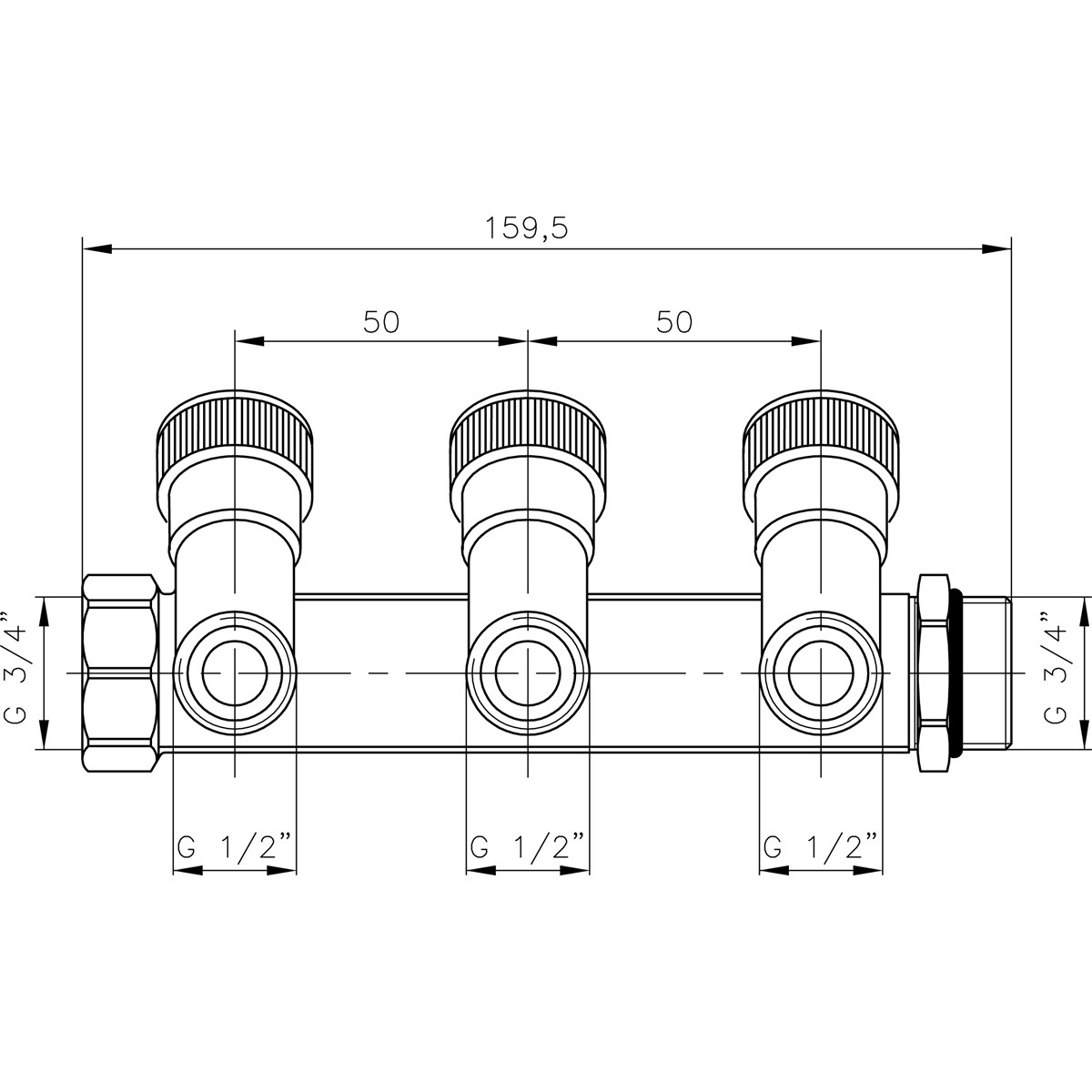

Manifold UNI 2-½”-Valve, 3-½”-Valve and 4-½”-Valve have connections primary ¾”; (male and female) and connection ½”;- c/c 50 mm male on the outlet ports.

Pipes X16, A16, X20 and A20 can be connected both with LK Compression Connection and LK PressPex Press Connection.

The manifold has an o-ring mounted on the male thread ¾" side, enabling connection to 2 manifolds together without further sealing.

If two manifolds UNI-Valve are to be assembled with the outlets upwards and downwards, it can be facilitated by using LK Jointing Nipple UNI ¾", Art. no. 187 82 06.
