Products
>
Universal
>
Press fittings
>
Fittings for PEM
>
LK PressPex PEM Elbow Fitting 90º female

LK PressPex PEM Elbow Fitting 90º female

Press fitting for connection of PEM hose. This range includes PressPex connectors for universal (gray plastic ring) corresponding to the pipe dimension of the PEM hose. Dimension 16 x 2,0 for PEM hose is wit...

Variants
Detailed Information
Documentation

Variants

Article	Dim.	C mm	G mm	L mm	CO₂-EQ. (Kg)
187 65 41	AX16 x ½"	24	14	42.5	0.19
187 84 48	AX16 x ¾"	25	15	45.5	0.22
187 80 03	A32 x ¾""	30	15	47	0.37
187 65 45	A32 x 1"	32.5	16	51	0.42
187 84 50	A32 x 1¼"	34	19	55.5	0.52

Dim.	AX16 x ½"
C mm	24
G mm	14
L mm	42.5
CO₂-EQ. (Kg)	0.19
Packaging
Item list

Dim.	AX16 x ¾"
C mm	25
G mm	15
L mm	45.5
CO₂-EQ. (Kg)	0.22
Packaging
Item list

Dim.	A32 x ¾""
C mm	30
G mm	15
L mm	47
CO₂-EQ. (Kg)	0.37
Packaging
Item list

Dim.	A32 x 1"
C mm	32.5
G mm	16
L mm	51
CO₂-EQ. (Kg)	0.42
Packaging
Item list

Dim.	A32 x 1¼"
C mm	34
G mm	19
L mm	55.5
CO₂-EQ. (Kg)	0.52
Packaging
Item list

Detailed Information

Description

Press fitting for connection of PEM hose.
This range includes PressPex connectors for universal (gray plastic ring) corresponding to the pipe dimension of the PEM hose.
Dimension 16 x 2,0 for PEM hose is with gray ring.
Dimension 32 x 3,0 for PEM hose is with gray ring.

Documentation

Product sheet

LK PressPex PEM Elbow Fitting 90º female

EPD

LK PressPex Fittings & Manifolds - EPD

EPD

LK PressPex Fittings Straight & Elbow - EPD

Article 187 65 41

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590013365	Unpacked	73	41	25	0.11
10	7331590013372	Bag	190	130	30	1.1
200	7331590013389	Case	370	230	180	22

Article 187 65 41

Quantity	1
EAN	7331590013365
Packaging	Unpacked
Depth	73
Width	41
Height	25
Weight (kg)	0.11

Quantity	10
EAN	7331590013372
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	1.1

Quantity	200
EAN	7331590013389
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	22

Article 187 84 48

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029298	Bag	64	37	35	0.11
10	7331590029304	Bag	140	130	40	1.1
150	7331590029311	Case	380	230	190	16.3

Article 187 84 48

Quantity	1
EAN	7331590029298
Packaging	Bag
Depth	64
Width	37
Height	35
Weight (kg)	0.11

Quantity	10
EAN	7331590029304
Packaging	Bag
Depth	140
Width	130
Height	40
Weight (kg)	1.1

Quantity	150
EAN	7331590029311
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	16.3

Article 187 80 03

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590022848	Bag	65	39	50	0.139
75	7331590022855	Case	370	225	165	10.42

Article 187 80 03

Quantity	1
EAN	7331590022848
Packaging	Bag
Depth	65
Width	39
Height	50
Weight (kg)	0.139

Quantity	75
EAN	7331590022855
Packaging	Case
Depth	370
Width	225
Height	165
Weight (kg)	10.42

Article 187 65 45

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590013488	Unpacked	114	75	40	0.29
5	7331590013495	Bag	190	130	30	1.45
60	7331590013501	Case	370	230	180	17.4

Article 187 65 45

Quantity	1
EAN	7331590013488
Packaging	Unpacked
Depth	114
Width	75
Height	40
Weight (kg)	0.29

Quantity	5
EAN	7331590013495
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	1.45

Quantity	60
EAN	7331590013501
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	17.4

Article 187 84 50

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590029359	Bag	82	54	52	0.24
5	7331590029366	Bag	170	140	60	1.2
40	7331590029373	Case	380	230	190	10.2

Article 187 84 50

Quantity	1
EAN	7331590029359
Packaging	Bag
Depth	82
Width	54
Height	52
Weight (kg)	0.24

Quantity	5
EAN	7331590029366
Packaging	Bag
Depth	170
Width	140
Height	60
Weight (kg)	1.2

Quantity	40
EAN	7331590029373
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	10.2

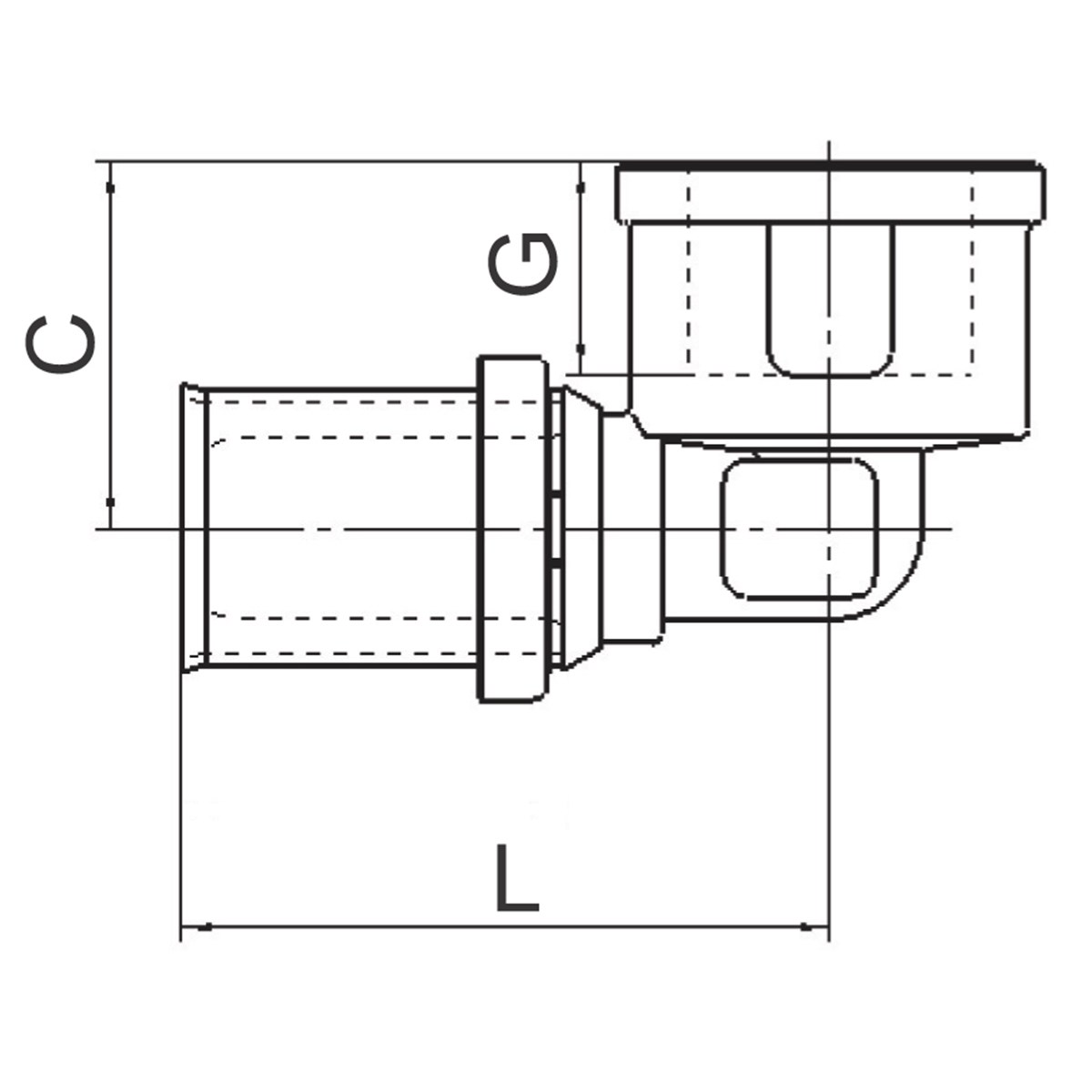

Article	C mm	G mm	L mm
187 65 41	24	14	42.5
187 84 48	25	15	45.5
187 80 03	30	15	47
187 65 45	32.5	16	51
187 84 50	34	19	55.5

Article 187 65 41

C mm	24
G mm	14
L mm	42.5

Article 187 84 48

C mm	25
G mm	15
L mm	45.5

Article 187 80 03

C mm	30
G mm	15
L mm	47

Article 187 65 45

C mm	32.5
G mm	16
L mm	51

Article 187 84 50

C mm	34
G mm	19
L mm	55.5
