LK PressPex Straight Fitting with loose nut

LK PressPex Straight Fitting with loose nut

Press fitting for connection of LK PAL and LK PE-X Universal Pipe. For flat seal. Teflon gasket included.

Variants
Detailed Information
Documentation
Related Products

Variants

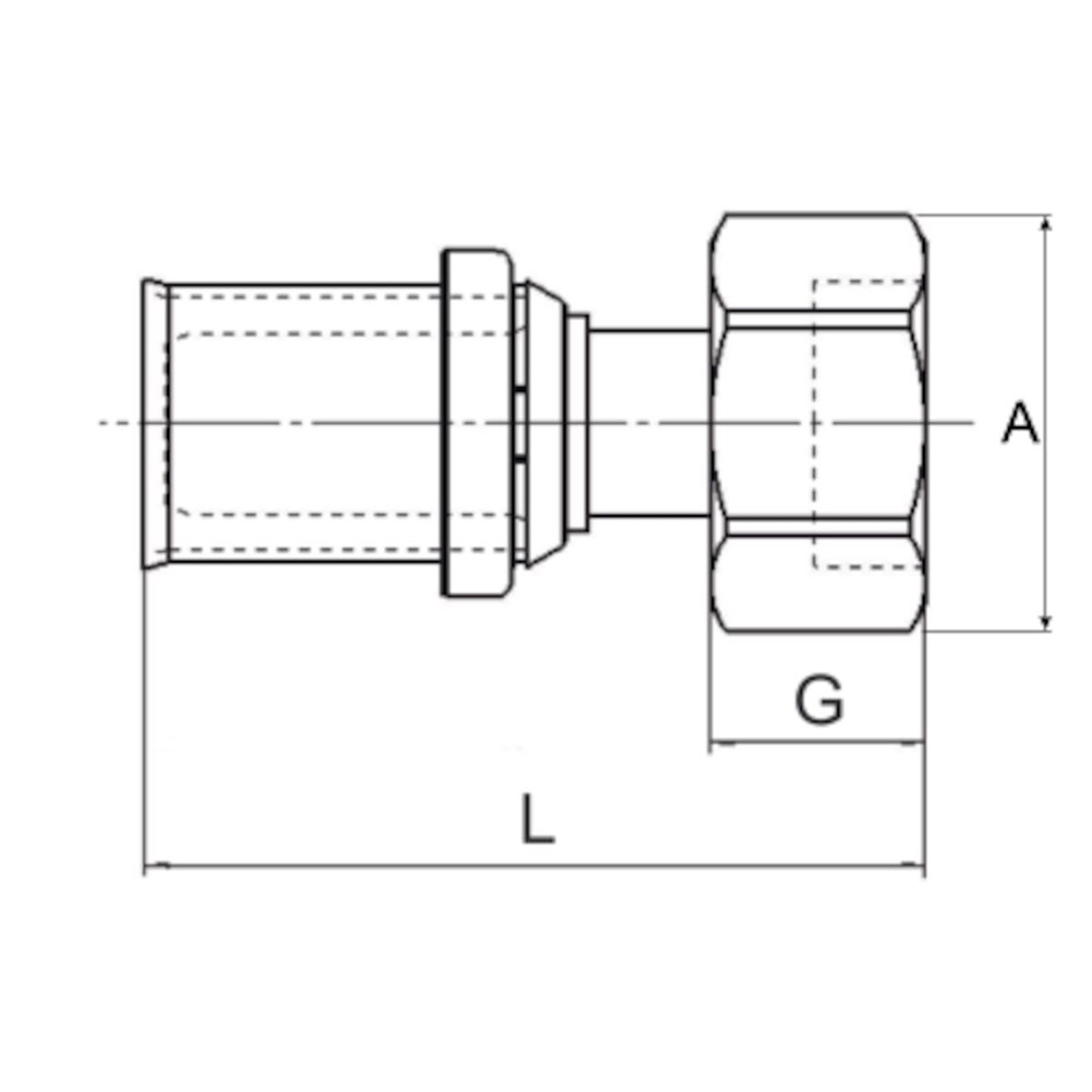

Article	Dim.	A mm	G mm	L mm	CO₂-EQ. (Kg)	C mm
187 65 27	AX16 x ½"	24	95	50	0.25
187 65 28	AX16 x ¾"	30	95	50	0.29
188 25 07	AX20 x ½"	24	95	50	0.25
187 65 25	AX20 x ¾"	30	95	49.5	0.33
188 84 92	AX25 x ¾"	30	15	47.5	0.37
188 84 91	AX20 x M22 Elbow	26	12	42.5	0.2	29.5
187 65 26	AX25 x 1"		95	51.5	0.49
188 84 93	A32 x 1"		95	55	0.58
188 84 95	A32 x 1 ¼”		95	52.5	0.7
188 84 96	A40 x 1 ¼”		95	57	0.9
188 25 08	A40 x 1 ½”		95	57	1.11
188 84 97	A50 x 1 ½”		95	74	1.56
188 25 09	A50 x 2”		95	74	1.81
188 25 10	A63 x 2"		95	89	2.3

Dim.	AX16 x ½"
A mm	24
G mm	95
L mm	50
CO₂-EQ. (Kg)	0.25
C mm
Packaging
Item list

Dim.	AX16 x ¾"
A mm	30
G mm	95
L mm	50
CO₂-EQ. (Kg)	0.29
C mm
Packaging
Item list

Dim.	AX20 x ½"
A mm	24
G mm	95
L mm	50
CO₂-EQ. (Kg)	0.25
C mm
Packaging
Item list

Dim.	AX20 x ¾"
A mm	30
G mm	95
L mm	49.5
CO₂-EQ. (Kg)	0.33
C mm
Packaging
Item list

Dim.	AX25 x ¾"
A mm	30
G mm	15
L mm	47.5
CO₂-EQ. (Kg)	0.37
C mm
Packaging
Item list

Dim.	AX20 x M22 Elbow
A mm	26
G mm	12
L mm	42.5
CO₂-EQ. (Kg)	0.2
C mm	29.5
Packaging
Item list

Dim.	AX25 x 1"
A mm
G mm	95
L mm	51.5
CO₂-EQ. (Kg)	0.49
C mm
Packaging
Item list

Dim.	A32 x 1"
A mm
G mm	95
L mm	55
CO₂-EQ. (Kg)	0.58
C mm
Packaging
Item list

Dim.	A32 x 1 ¼”
A mm
G mm	95
L mm	52.5
CO₂-EQ. (Kg)	0.7
C mm
Packaging
Item list

Dim.	A40 x 1 ¼”
A mm
G mm	95
L mm	57
CO₂-EQ. (Kg)	0.9
C mm
Packaging
Item list

Dim.	A40 x 1 ½”
A mm
G mm	95
L mm	57
CO₂-EQ. (Kg)	1.11
C mm
Packaging
Item list

Dim.	A50 x 1 ½”
A mm
G mm	95
L mm	74
CO₂-EQ. (Kg)	1.56
C mm
Packaging
Item list

Dim.	A50 x 2”
A mm
G mm	95
L mm	74
CO₂-EQ. (Kg)	1.81
C mm
Packaging
Item list

Dim.	A63 x 2"
A mm
G mm	95
L mm	89
CO₂-EQ. (Kg)	2.3
C mm
Packaging
Item list

Detailed Information

Description

Press fitting for connection of LK PAL and LK PE-X Universal Pipe. For flat seal. Teflon gasket included.

Documentation

Product sheet

LK PressPex Straight Fitting with loose nut

EPD

LK PressPex Fitting with loose nut, Straight & Elbow - EPD

Article 187 65 27

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590015284	Unpacked	47	24	27	0.065
10	7331590015291	Bag	125	85	25	0.6
340	7331590026464	Case	380	230	190	19.6

Article 187 65 27

Quantity	1
EAN	7331590015284
Packaging	Unpacked
Depth	47
Width	24
Height	27
Weight (kg)	0.065

Quantity	10
EAN	7331590015291
Packaging	Bag
Depth	125
Width	85
Height	25
Weight (kg)	0.6

Quantity	340
EAN	7331590026464
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	19.6

Article 187 65 28

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590015345	Unpacked	47	30	34	0.077
10	7331590015352	Bag	130	100	30	0.7
240	7331590026471	Case	380	230	190	17.6

Article 187 65 28

Quantity	1
EAN	7331590015345
Packaging	Unpacked
Depth	47
Width	30
Height	34
Weight (kg)	0.077

Quantity	10
EAN	7331590015352
Packaging	Bag
Depth	130
Width	100
Height	30
Weight (kg)	0.7

Quantity	240
EAN	7331590026471
Packaging	Case
Depth	380
Width	230
Height	190
Weight (kg)	17.6

Article 188 25 07

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054115	Unpacked	47	30	34	0.09
10	7331590054122	Bag	190	130	30	0.9
240	7331590054139	Case	370	220	180	19.2

Article 188 25 07

Quantity	1
EAN	7331590054115
Packaging	Unpacked
Depth	47
Width	30
Height	34
Weight (kg)	0.09

Quantity	10
EAN	7331590054122
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	0.9

Quantity	240
EAN	7331590054139
Packaging	Case
Depth	370
Width	220
Height	180
Weight (kg)	19.2

Article 187 65 25

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590015161	Unpacked	47	30	34	0.09
10	7331590015178	Bag	190	130	30	0.9
240	7331590026495	Case	370	220	180	19.2

Article 187 65 25

Quantity	1
EAN	7331590015161
Packaging	Unpacked
Depth	47
Width	30
Height	34
Weight (kg)	0.09

Quantity	10
EAN	7331590015178
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	0.9

Quantity	240
EAN	7331590026495
Packaging	Case
Depth	370
Width	220
Height	180
Weight (kg)	19.2

Article 188 84 92

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590043973	Unpacked	50	20	20	0.11
10	7331590043980	Bag	50	200	27	1.1
200	7331590043997	Case	375	230	180	22.2

Article 188 84 92

Quantity	1
EAN	7331590043973
Packaging	Unpacked
Depth	50
Width	20
Height	20
Weight (kg)	0.11

Quantity	10
EAN	7331590043980
Packaging	Bag
Depth	50
Width	200
Height	27
Weight (kg)	1.1

Quantity	200
EAN	7331590043997
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	22.2

Article 188 84 91

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590043942	Unpacked	56	28	26	0.041
10	7331590043959	Bag	190	150	35	0.41
200	7331590043966	Case	375	230	180	8.4

Article 188 84 91

Quantity	1
EAN	7331590043942
Packaging	Unpacked
Depth	56
Width	28
Height	26
Weight (kg)	0.041

Quantity	10
EAN	7331590043959
Packaging	Bag
Depth	190
Width	150
Height	35
Weight (kg)	0.41

Quantity	200
EAN	7331590043966
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	8.4

Article 187 65 26

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590015222	Unpacked	47	36	41	0.14
5	7331590015239	Bag	190	130	30	0.7
120	7331590027492	Case	370	230	180	14.9

Article 187 65 26

Quantity	1
EAN	7331590015222
Packaging	Unpacked
Depth	47
Width	36
Height	41
Weight (kg)	0.14

Quantity	5
EAN	7331590015239
Packaging	Bag
Depth	190
Width	130
Height	30
Weight (kg)	0.7

Quantity	120
EAN	7331590027492
Packaging	Case
Depth	370
Width	230
Height	180
Weight (kg)	14.9

Article 188 84 93

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590044031	Unpacked	55	34	34	0.14
5	7331590044048	Unpacked	55	170	34	0.7
90	7331590044055	Case	375	230	180	12.8

Article 188 84 93

Quantity	1
EAN	7331590044031
Packaging	Unpacked
Depth	55
Width	34
Height	34
Weight (kg)	0.14

Quantity	5
EAN	7331590044048
Packaging	Unpacked
Depth	55
Width	170
Height	34
Weight (kg)	0.7

Quantity	90
EAN	7331590044055
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	12.8

Article 188 84 95

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590044000	Unpacked	55	42	42	0.18
5	7331590044017	Bag	55	210	42	0.9
70	7331590044024	Case	375	230	180	12.8

Article 188 84 95

Quantity	1
EAN	7331590044000
Packaging	Unpacked
Depth	55
Width	42
Height	42
Weight (kg)	0.18

Quantity	5
EAN	7331590044017
Packaging	Bag
Depth	55
Width	210
Height	42
Weight (kg)	0.9

Quantity	70
EAN	7331590044024
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	12.8

Article 188 84 96

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590044062	Unpacked	58	44	44	0.112
84	7331590066460	Case	375	230	180	12

Article 188 84 96

Quantity	1
EAN	7331590044062
Packaging	Unpacked
Depth	58
Width	44
Height	44
Weight (kg)	0.112

Quantity	84
EAN	7331590066460
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	12

Article 188 25 08

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054146	Bag	58	48	48	0.112
54	7331590054153	Case	375	230	180	6.1

Article 188 25 08

Quantity	1
EAN	7331590054146
Packaging	Bag
Depth	58
Width	48
Height	48
Weight (kg)	0.112

Quantity	54
EAN	7331590054153
Packaging	Case
Depth	375
Width	230
Height	180
Weight (kg)	6.1

Article 188 84 97

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590044093	Unpacked	74	48	48	0.25
40	7331590066477	Case	375	230	48180	12.8

Article 188 84 97

Quantity	1
EAN	7331590044093
Packaging	Unpacked
Depth	74
Width	48
Height	48
Weight (kg)	0.25

Quantity	40
EAN	7331590066477
Packaging	Case
Depth	375
Width	230
Height	48180
Weight (kg)	12.8

Article 188 25 09

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054160	Bag	74	48	48	0.25
30	7331590054177	Case	380	230	180	7.5

Article 188 25 09

Quantity	1
EAN	7331590054160
Packaging	Bag
Depth	74
Width	48
Height	48
Weight (kg)	0.25

Quantity	30
EAN	7331590054177
Packaging	Case
Depth	380
Width	230
Height	180
Weight (kg)	7.5

Article 188 25 10

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590054184	Bag	74	48	48	0.25
30	7331590054191	Case	380	230	180	8

Article 188 25 10

Quantity	1
EAN	7331590054184
Packaging	Bag
Depth	74
Width	48
Height	48
Weight (kg)	0.25

Quantity	30
EAN	7331590054191
Packaging	Case
Depth	380
Width	230
Height	180
Weight (kg)	8

Article	A mm	C mm	G mm	L mm
187 65 27	24		95	50
187 65 28	30		95	50
188 25 07	24		95	50
187 65 25	30		95	49.5
188 84 92	30		15	47.5
188 84 91	26	29.5	12	42.5
187 65 26			95	51.5
188 84 93			95	55
188 84 95			95	52.5
188 84 96			95	57
188 25 08			95	57
188 84 97			95	74
188 25 09			95	74
188 25 10			95	89

Article 187 65 27

A mm	24
C mm
G mm	95
L mm	50

Article 187 65 28

A mm	30
C mm
G mm	95
L mm	50

Article 188 25 07

A mm	24
C mm
G mm	95
L mm	50

Article 187 65 25

A mm	30
C mm
G mm	95
L mm	49.5

Article 188 84 92

A mm	30
C mm
G mm	15
L mm	47.5

Article 188 84 91

A mm	26
C mm	29.5
G mm	12
L mm	42.5

Article 187 65 26

A mm
C mm
G mm	95
L mm	51.5

Article 188 84 93

A mm
C mm
G mm	95
L mm	55

Article 188 84 95

A mm
C mm
G mm	95
L mm	52.5

Article 188 84 96

A mm
C mm
G mm	95
L mm	57

Article 188 25 08

A mm
C mm
G mm	95
L mm	57

Article 188 84 97

A mm
C mm
G mm	95
L mm	74

Article 188 25 09

A mm
C mm
G mm	95
L mm	74

Article 188 25 10

A mm
C mm
G mm	95
L mm	89
