21 March, 2023

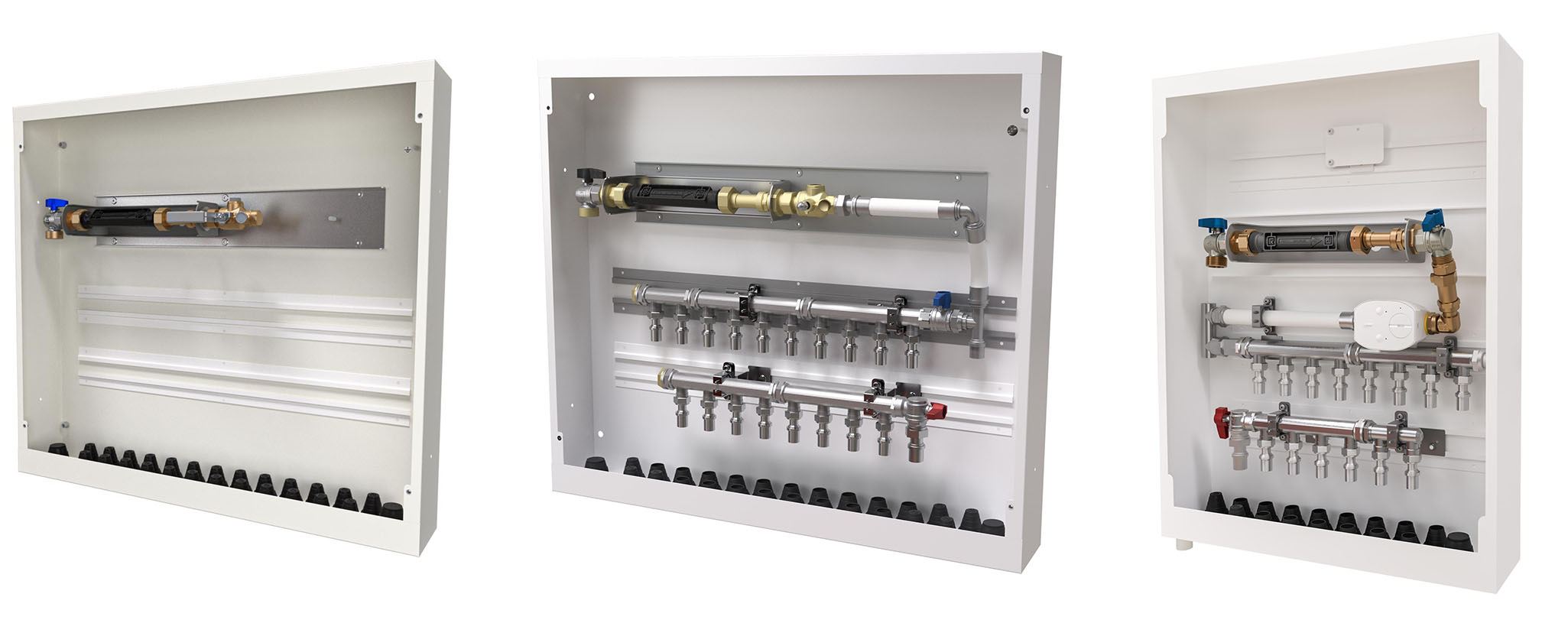

We are expanding our range of cabinets with new prefabricated water meter cabinets.

We present new LK Water meter cabinets UNI XL and UNI 8/6 CS in right and left versions.

Water Meter Cabinet UNI

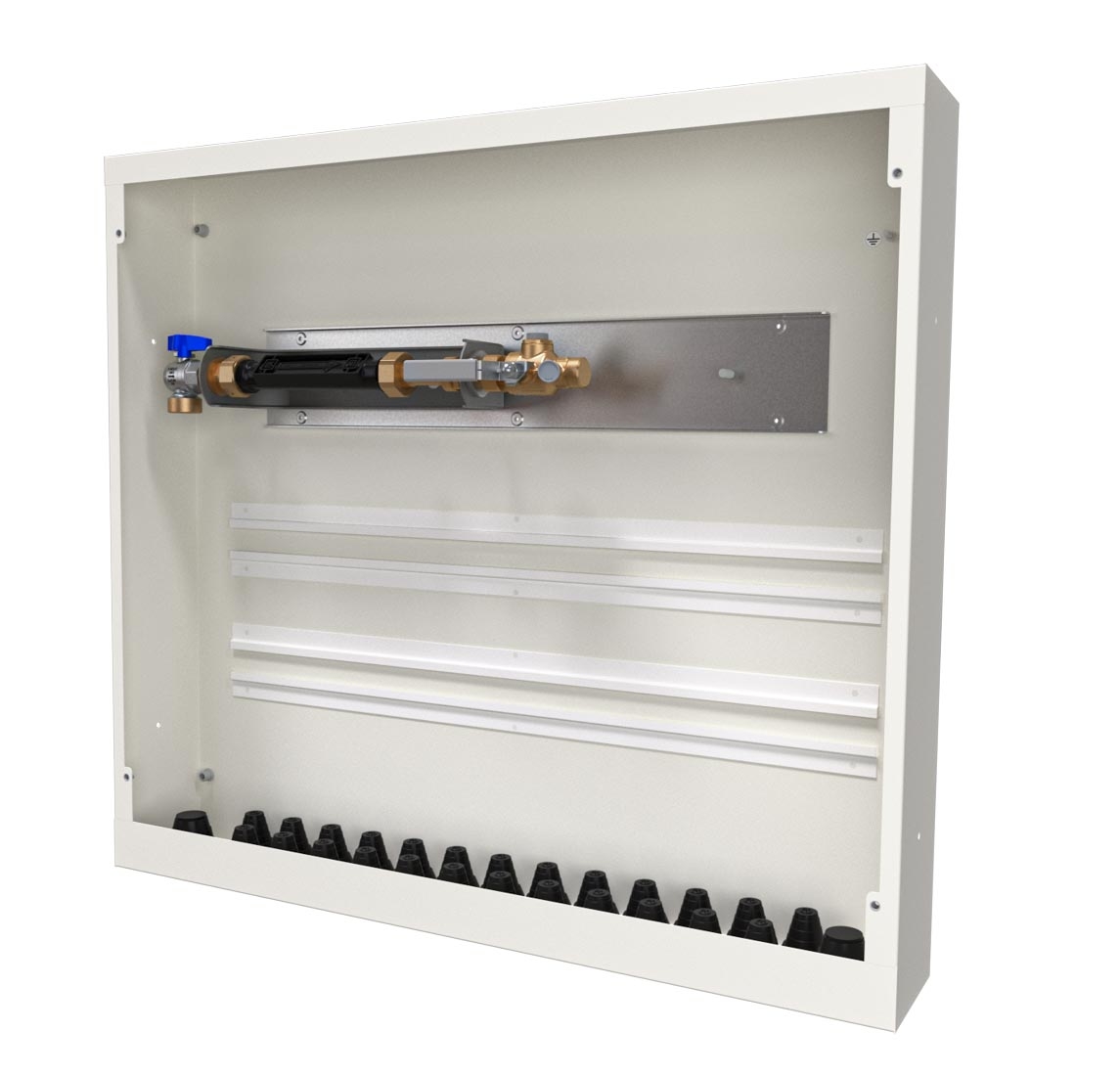

LK Water Meter Cabinet UNI XL

A leak-proof manifold cabinet with a pre-assembled water meter bracket G1"" (DN20), 220/190 mm with supplied brass adapter.

  • With space up to 12 circuits HW and 12 circuits CW
  • With space for Water Safety Unit LK CubicSecure
  • The water meter consol is reversable for connection on left or right side

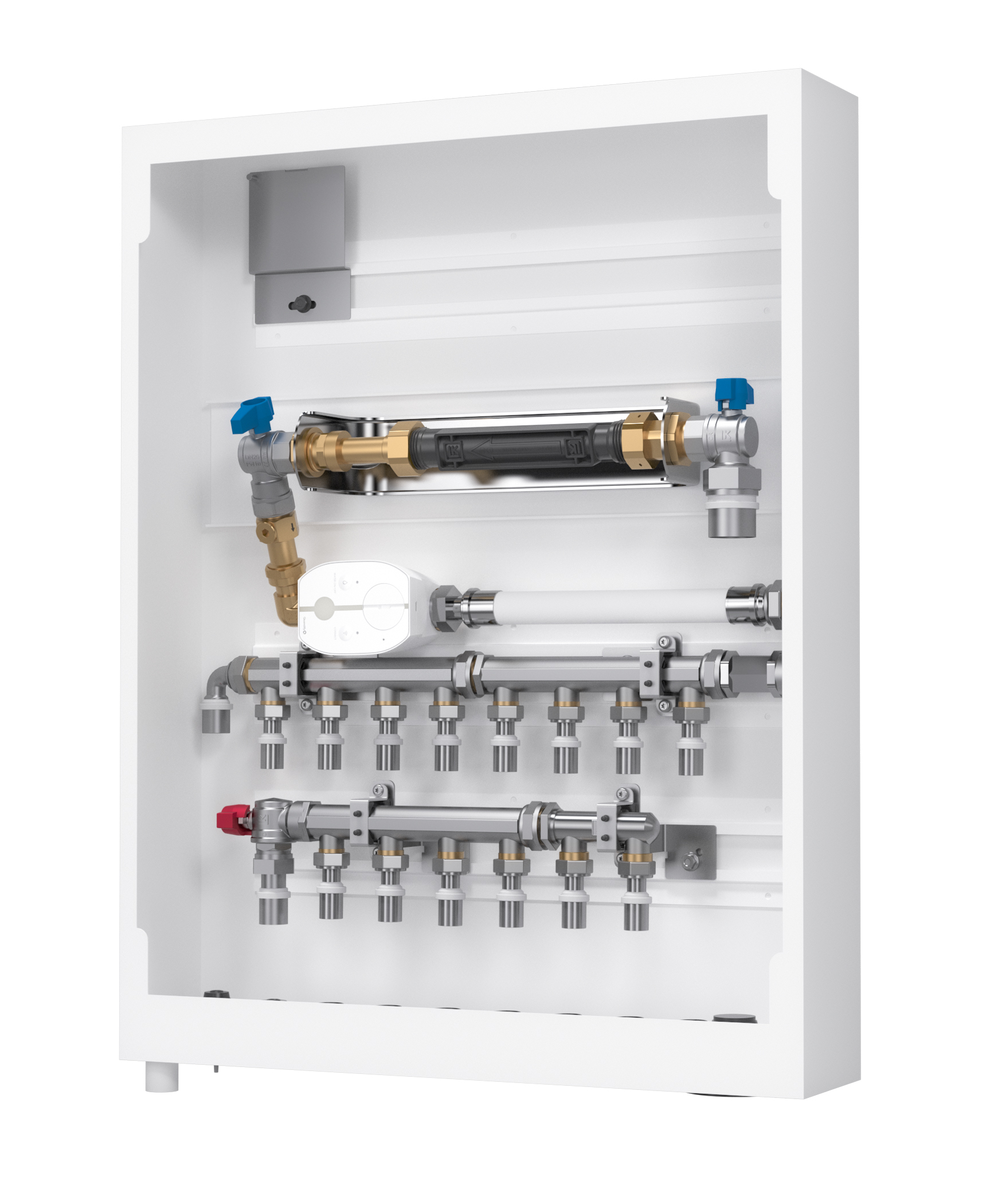

LK Water Meter Cabinet UNI 8/6 CS

A leak-proof prefabricated manifold cabinet for 8 cold water connections, 6 hot water connections, fitted with LK CubicSecure and a pre-assembled water meter bracket G1" (DN20),

  • Complete VM cabinet with CubicSecure installed
  • Right and left version

ATTENTION! LK Water meter cabinet UNI 8/6 CS Right 1882679 replaces 1882420​
ATTENTION! LK Water meter cabinet UNI 8/6 CS Left 1882680 replaces 1882421

Related links

Related Products

LK Water Meter Cabinet UNI XL

LK Water meter Cabinet UNI XL is a leak-proof manifold cabinet with a pre-assembled water meter bracket G1"" (DN20), 220/190 mm with supplied brass adapter. The incoming cold water service is fed from below, external connection. G25 in bracket. Supplied with ball valve, a gauge block for the local authority tap water metre and a controllable check valve. Supplied complete with 2 pcs ø32-50 mm and 25 pcs ø20-25 mm pipe inlets. All couplings and ball valves are made from DZR brass. Meets Sweden's SÄKER VATTEN plumbing safety regulations. A protective bag is included to cover the cabinet during building work. In order to assemble and leave space for the drainage bend then the cabinet must be mounted at least 250 mm from the bottom of the cabinet base to the installed floor. Note! LK Frame with hatch must be ordered separately, RSK 243 46 79 is suitable for LK Water Meter Cabinet UNI XL. The cabinet can be supplemented with LK Bracket UNI and LK Manifold UNI. For other versions or for custom-made cabinet solutions please contact LK Prefab, phone: 026 -54 26 40"

LK Water Meter Cabinet 8/6 CS

LK Water Meter Cabinet UNI 8/6 CS is a leak-proof prefabricated manifold cabinet for 8 cold water connections, 6 hot water connections, fitted with LK CubicSecure and a pre-assembled water meter bracket G1" (DN20), 220/190 mm with supplied brass adapter. A Leakdetector with head unit is inluded in the assembly. The incoming cold water service is fed from below, external connection, 1" bracket. The cabinet is available in two versions for connecting the cold water on the right and left side. The cabinet cannot be rebuilt as it only has one hole for the feed pipe. The cabinet includes a ball valve, a gauge block for the local authority tap water metre and a controllable check valve. It is delivered complete with the correct pipe inlets for both feeding and coupling pipes (conduit dimensions 2 pcs ø32-50 and 14st ø25, 1 pcs 12-34). 14 pcs LK Press Connection Coupling AX16xG15 for coupling pipes are also included, and outlets for AX20 for feeding to and from water heaters. All manifolds, couplings and ball valves are made from DZR brass. A protective bag is included to cover the cabinet during building work. In order to assemble and leave space for the drainage bend the cabinet must be mounted at least 300 mm from the bottom of the cabinet base to the installed floor. Meets Sweden's SÄKER VATTEN plumbing safety regulations. Note! LK Frame with hatch, Art No. 243 46 80, is also suitable for LK Water Meter Cabinet UNI 8/6 CS but must be ordered separately.
