LK Shunt Cabinet VS2

LK Shunt Cabinet VS2

Variants
Detailed Information
Documentation
Related Products

Variants

Article	Intended for	Width	Height	Depth	CO₂-EQ. (Kg)	Weight (kg)	Packaging	Item List
243 53 61	Manifold Shunt VS2 + Manifold RF 2-7	800 mm	710 mm	95 mm	26.4	10,7
243 53 62	Manifold Shunt VS2 + Manifold RF 8-12	1050 mm	710 mm	95 mm	32.92	13,2

Intended for	Manifold Shunt VS2 + Manifold RF 2-7
Width	800 mm
Height	710 mm
Depth	95 mm
CO₂-EQ. (Kg)	26.4
Weight (kg)	10,7
Packaging
Item list

Intended for	Manifold Shunt VS2 + Manifold RF 8-12
Width	1050 mm
Height	710 mm
Depth	95 mm
CO₂-EQ. (Kg)	32.92
Weight (kg)	13,2
Packaging
Item list

Detailed Information

Description

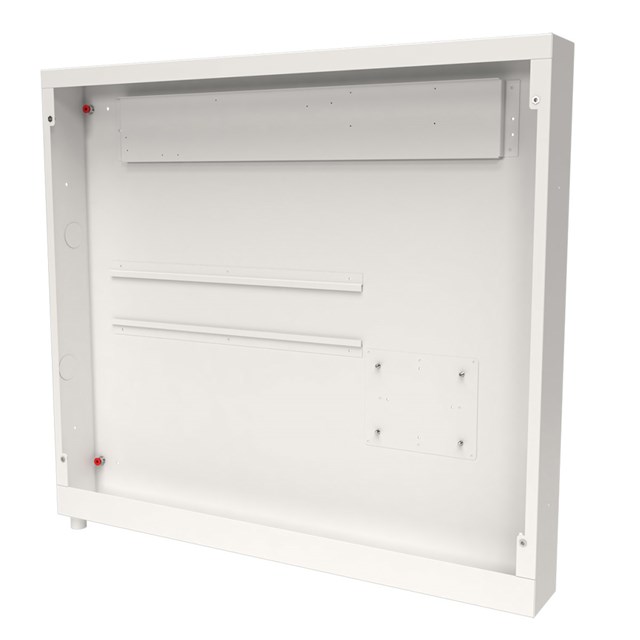

LK Shunt Cabinet VS2 is designed for use where there is a requirement to conceal LK Manifold Shunt VS2 and LK Manifold RF. NOTE: LK Manifold Shunt VS2 should be installed on the right-hand side of the cabinet.

The cabinet has a dense base with rubber pipe grommets. The cabinet base is provided with a drainage opening which allows any water leakage to be drained to a location which can be inspected. The cabinet is manufactured from 1 mm powder-coated sheet steel, RAL 9016.

The cabinet is designed for installation built into a wall or surface-mounted on a wall. When building in the cabinet, the minimum stud thickness is 95 mm. The cabinet must be supplemented with a frame/hatch. There are two types of frame/hatch, depending on whether the cabinet is built into or surface-mounted on an inner wall. When surface-mounted, the cabinet must also be supplemented with a base in order to conceal pipes between the cabinet and the floor.

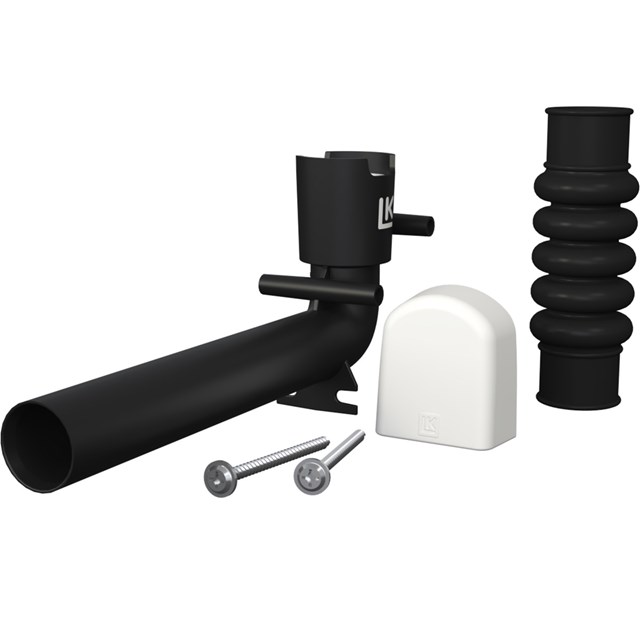

LK Shunt Cabinet VS2 is supplied with pipe grommets, a bellow sleeve for drainage, a 1.5-metre conduit for drainage, drainage elbow with outlet plate, cable grommets for room control, spray guard and installation instructions.

The back of the cabinet is provided with four prefitted M8 nuts which can be used for attachment to the LK Cabinet Stand when the cabinet has to be installed before a concrete base is cast.
