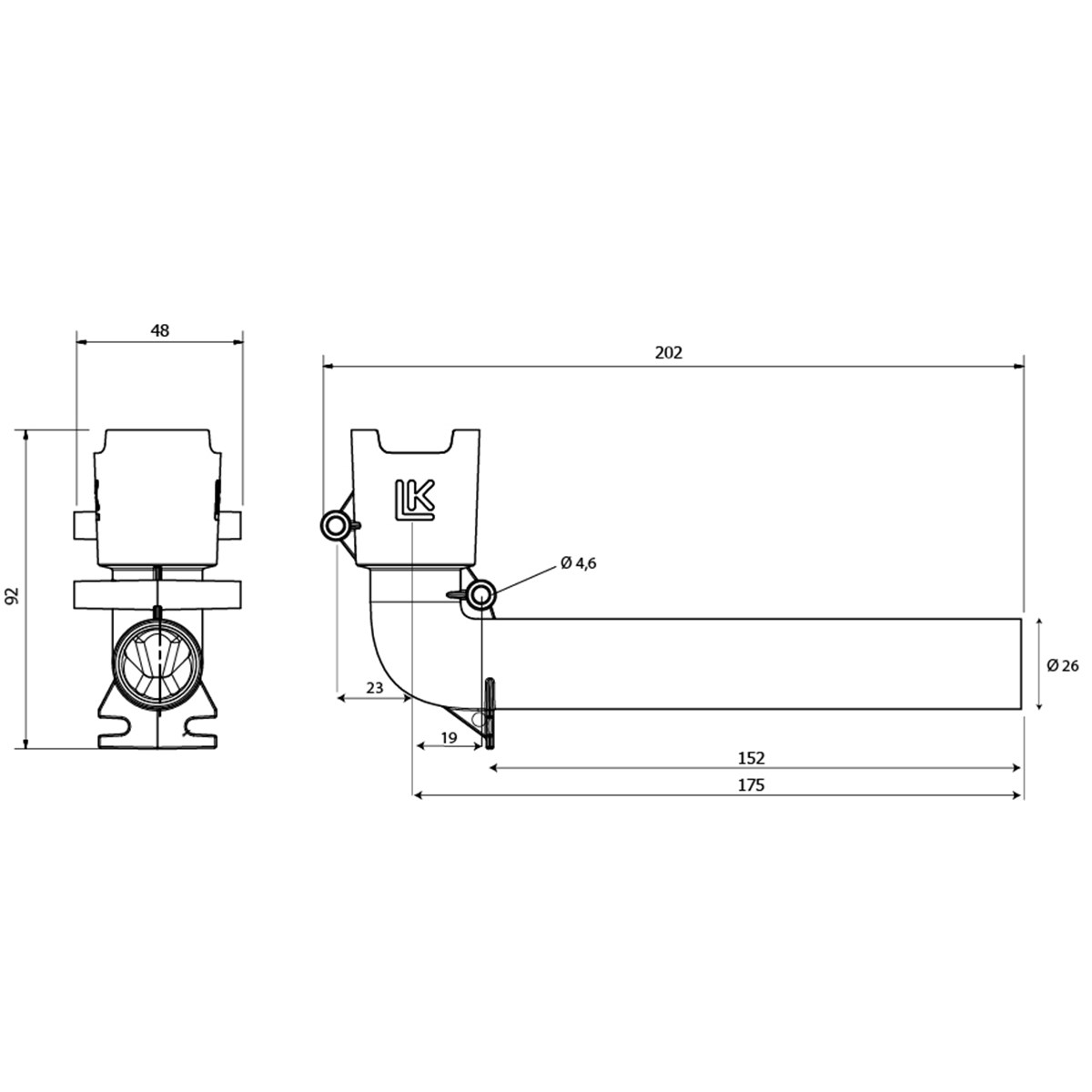

LK Drainage elbow V2 complete

LK Drainage elbow V2 complete

Complete spare part package for mounting of LK Drainage elbow with outlet plate to the LK Manifold Cabinet GV and UNI. LK Drainage elbow V2 complete is included in LK Manifold Cabinet GV and UNI. Drainage el...

Variants
Detailed Information
Documentation
Related Products

Variants

Article	For conduit dim.	Note	Packaging	Item List
188 26 11	25 mm	152mm long tube

For conduit dim.	25 mm
Note	152mm long tube
Packaging
Item list

Detailed Information

Description

Complete spare part package for mounting of LK Drainage elbow with outlet plate to the LK Manifold Cabinet GV and UNI. LK Drainage elbow V2 complete is included in LK Manifold Cabinet GV and UNI.

Drainage elbow facilitates the installation of inspection outlet. Spare parts package includes bellow sleeve, drainage elbow, white outlet plate and two mounting screws.

For a more exclusive appearance, can LK Outlet Plate V2 chrome be purchased, Article no. 188 26 14.

For length adjustment of drainage elbow against the wall suitably used LK Drainage elbow cutter V2, Article no. 188 26 15.

Documentation

Product sheet

LK Drainage elbow V2 complete

Assembly instruction

LK Dränageböj V2

Assembly instruction

LK Drainage Elbow V2

×

Article 188 26 11

Quantity	EAN	Packaging	Depth	Width	Height	Weight (kg)
1	7331590057109	Bag	210	100	50	0.095
100	7331590057116	Case	320	515	580	10

Article 188 26 11

Quantity	1
EAN	7331590057109
Packaging	Bag
Depth	210
Width	100
Height	50
Weight (kg)	0.095

Quantity	100
EAN	7331590057116
Packaging	Case
Depth	320
Width	515
Height	580
Weight (kg)	10
