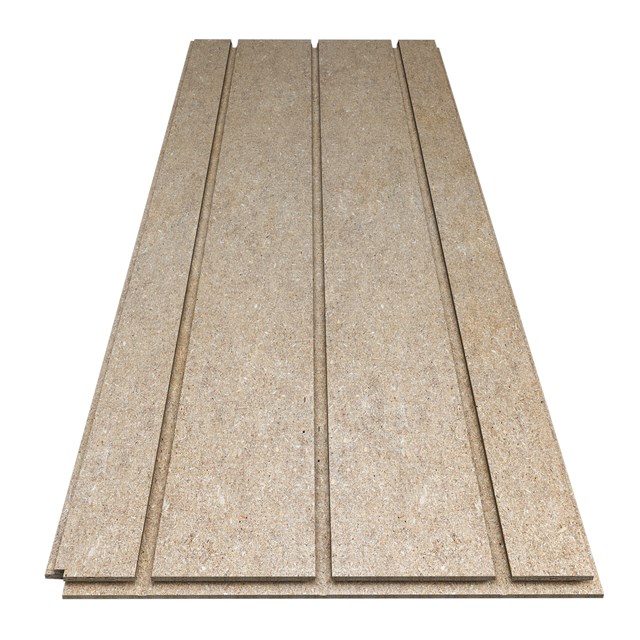

LK HeatFloor 22, Slotted Board

22 mm floor grade chipboard ‘tongue & grooved’ all round. The board has slots centered at 200 mm or 300 mm for LK Underfloor heating Pipe Ø 16 mm. The board is made in two quality classes, standard P6 and mois...

Read more

LKS0015

LK HeatFloor 22, Slotted Board

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Length Width Height c/c Quality class CO₂-EQ. (Kg) Weight (kg) Packaging Item List
241 89 02 1800 mm 600 mm 22 mm 200 P6* -10.7 16
298 88 69 1800 mm 600 mm 22 mm 300 P6* -11.04 17,4
241 92 71 1800 mm 600 mm 22 mm 200 P7 16

241 89 02

Length 1800 mm
Width 600 mm
Height 22 mm
c/c 200
Quality class P6*
CO₂-EQ. (Kg) -10.7
Weight (kg) 16
Packaging
Item list

298 88 69

Length 1800 mm
Width 600 mm
Height 22 mm
c/c 300
Quality class P6*
CO₂-EQ. (Kg) -11.04
Weight (kg) 17,4
Packaging
Item list

241 92 71

Length 1800 mm
Width 600 mm
Height 22 mm
c/c 200
Quality class P7
CO₂-EQ. (Kg)
Weight (kg) 16
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.
*Nordic Swan Ecolabelled

Detailed Information

Description

22 mm floor grade chipboard ‘tongue & grooved’ all round. The board has slots centered at 200 mm or 300 mm for LK Underfloor heating Pipe Ø 16 mm. The board is made in two quality classes, standard P6 and moisture resistant P7. The board shall be supplemented with LK Heat Distribution Plate 16/190, Art. no. 241 80 09 or LK Heat Distribution Plate 16/280 art.no 298 88 70.

Building height incl. pipes 22 mm.

LK Systems offers collection of used LK HeatFloor 22 boards. Please contact your local sales representative, who will assist you further in the process.

Material Consumption

  • Approx. 1,0 pcs/m² excl. turning zone surface

Documentation

Product sheet

LK HeatFloor 22, Slotted Board

Assembly instruction

On floor joists with HeatFloor 22

Assembly instruction

On load-bearing floors with LK HeatFloor 22

Assembly instruction

LK HeatFloor 22, Granab Joist Systems

EPD

LK HeatFloor Board - EPD
