LK Manifold Cabinet UNI HP

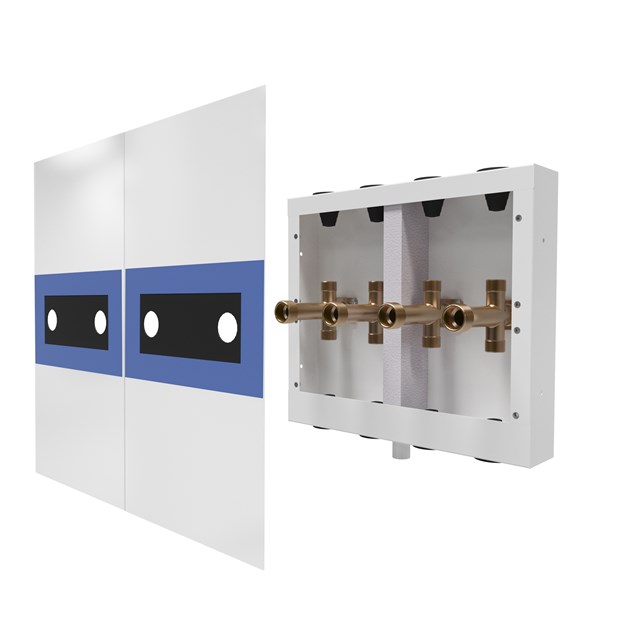

LK Distribution cabinet UNI VP is intended for use when connecting a heat source to pipes in the wall, such as cold water, hot water, supply and return. The cabinets are made of powder-coated sheet steel, white color RAL 9016 and have a waterproof bottom with a 50 mm high front edge and approved according to NT VVS 129.
The T-tubes that come with the cabinet have dimensions G20 EuroCone x G25 x G20 EuroCone. The G25 thread is adapted if the heat source is to be connected with a flexible hose or other designs.
LK Distribution cabinet UNI VP is delivered with LK T-pipe VP with flat adapters and hoods G20, pipe penetrations, drainage bend V2 complete.
LK Distribution cabinet UNI VP is available in two variants, one for connection of four pipes and one for connection with two pipes out through the wall. The cabinet can be easily assembled to create a modular system where six pipes can be connected.
