LK Manifold Angle UNI

180 ° angle which fits on LK Manifold UNI to tilt the feed pipe in the cabinet when for example installing heater volume indicator. Manufactured from dezincification resistant brass, nickel plated. The angle ...

Read more

LKS1881204

LK Manifold Angle UNI

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Dim. No. of outlets CO₂-EQ. (Kg) Packaging Item List
188 12 04 ¾" - Cu22 1 pcs extra G15 om plugg tas bort 0.76
188 25 64 G1/2" - G1/2" 0.13
188 25 63 G1/2" - G3/4" 0.15

188 12 04

Dim. ¾" - Cu22
No. of outlets 1 pcs extra G15 om plugg tas bort
CO₂-EQ. (Kg) 0.76
Packaging
Item list

188 25 64

Dim. G1/2" - G1/2"
No. of outlets
CO₂-EQ. (Kg) 0.13
Packaging
Item list

188 25 63

Dim. G1/2" - G3/4"
No. of outlets
CO₂-EQ. (Kg) 0.15
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

180 ° angle which fits on LK Manifold UNI to tilt the feed pipe in the cabinet when for example installing heater volume indicator. Manufactured from dezincification resistant brass, nickel plated.

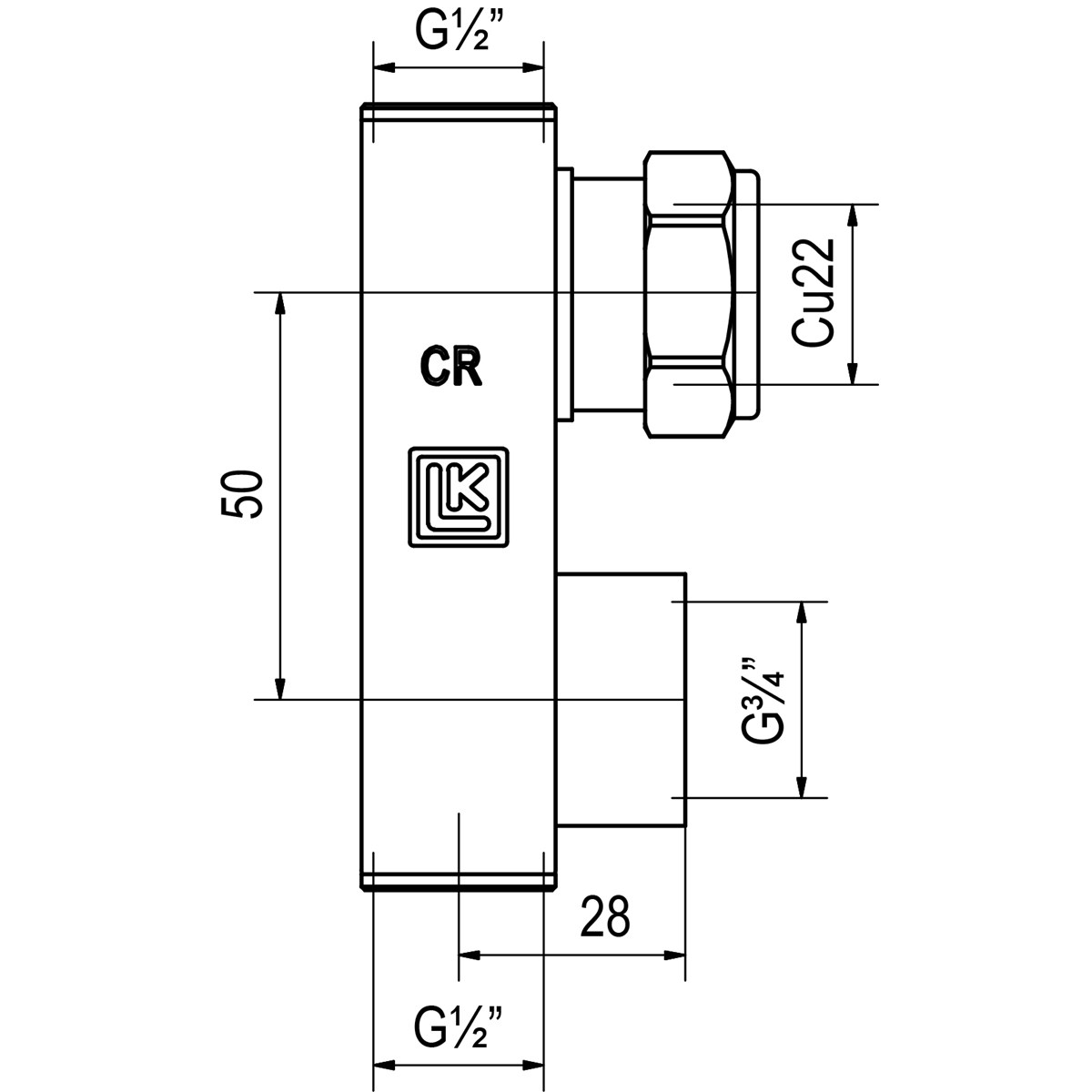

The angle has a 22 mm compression fittings for copper pipes for feed pipe and a female ¾” thread, adapted to be used against the O-ring seal on the male ¾" side of LK Manifold UNI without additional sealing. Distance between 22 mm compression fitting and female ¾” thread is c / c 50 mm.

The angle also has a ½” plug that can be removed to get an extra outlet with female ½” thread, alternatively it can be used to connect a temperature sensor.

Documentation

Product sheet

LK Manifold Angle UNI

EPD

LK Manifolds UNI & LK Mini Manifolds - EPD
