LK Manifold Angle VM

180 ° angle which fits on LK Manifold UNI to tilt the feed pipe in the cabinet when for example installing heater volume indicator. Manufactured from dezincification resistant brass, nickel plated. The angle...

Read more

LKS1882561

LK Manifold Angle VM

  • Variants
  • Detailed Information
  • Documentation
  • Related Products

Variants

Article Dim. CO₂-EQ. (Kg) Packaging Item List
188 25 61 G 3/4" - G1/2" 0.75
188 25 64 G1/2" - G1/2" 0.13
188 25 63 G1/2" - G3/4" 0.15

188 25 61

Dim. G 3/4" - G1/2"
CO₂-EQ. (Kg) 0.75
Packaging
Item list

188 25 64

Dim. G1/2" - G1/2"
CO₂-EQ. (Kg) 0.13
Packaging
Item list

188 25 63

Dim. G1/2" - G3/4"
CO₂-EQ. (Kg) 0.15
Packaging
Item list

The CO₂ equivalents represent the GWP-total (A1-A3) as a result from our EPD/environmental product declaration.

Detailed Information

Description

180 ° angle which fits on LK Manifold UNI to tilt the feed pipe in the cabinet when for example installing heater volume indicator. Manufactured from dezincification resistant brass, nickel plated.

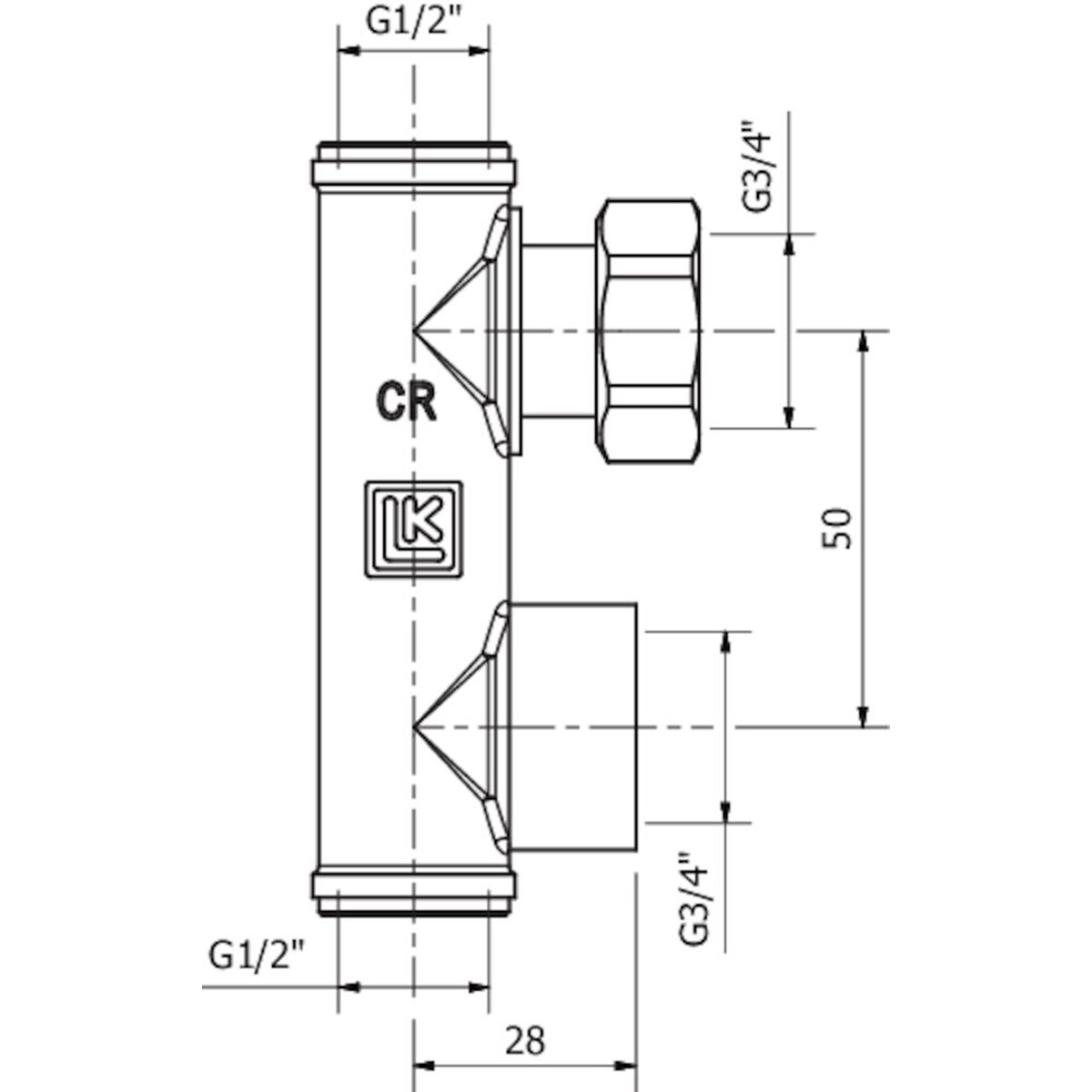

The angle has a swirveling nut with flat seal for water meaters and a female ¾” thread, adapted to be used against the O-ring seal on the male ¾" side of LK Manifold UNI without additional sealing. Distance between connections is c / c 50 mm.

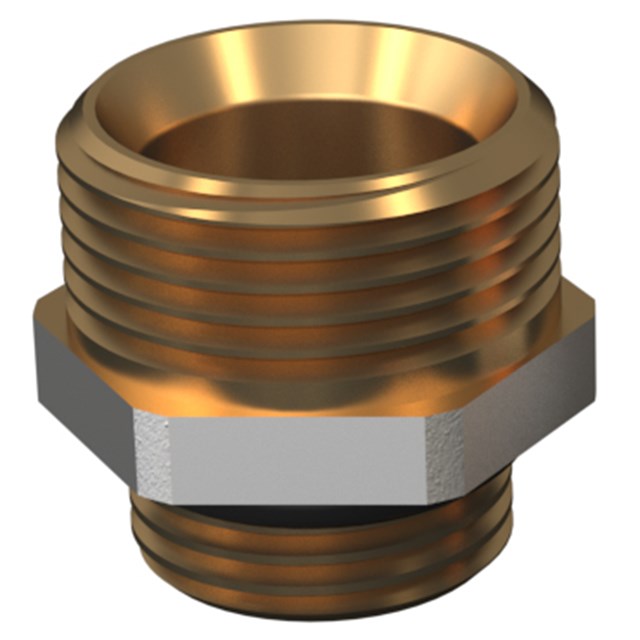

The angle also has a ½” plug that can be removed to get an extra outlet with female ½” thread or use the LK Nippel Manifold Angle ½” or ¾”. Alternatively it can be used to connect a temperature sensor.

Documentation

Product sheet

LK Manifold Angle VM

EPD

LK Manifolds UNI & LK Mini Manifolds - EPD
